YIHUA-936A,YIHUA-937D Constant Temperature Soldering Station Manufacturer

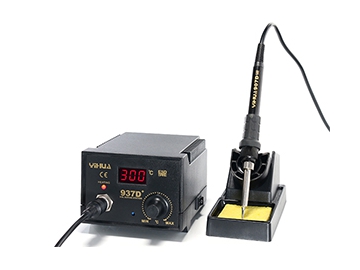

YIHUA-936A,YIHUA-937D Constant Temperature Soldering Station

Request a Quote

About Us: http://yihua-soldering.com/product-5-3-constant-temperature-soldering-station.html/147698/index.html

Features

With rapid heating and rapid temperature compensation, YIHUA-936A or YIHUA-937D constant temperature soldering station will result in no cold solder joints.
It is equipped with the imported high-power heater. Therefore, it is extremely suitable for desoldering large, complicated welded joints, in addition to the general small solder joints.
Its handle wire is silicone wire which withstands high temperature and has good flexibility. The silicone wire has no damage within 30s when on exposure to the 300℃ soldering iron.
Being anti-static, it will cause no damage to the delicate components.
This soldering station can automatically detect the faults. It will automatically alarm once detecting any failure.
YIHUA-936A or YIHUA-937D constant temperature soldering station is resistant to pressure and impact, since it is manufactured with the new solid mold.

Parameters

Rated Voltage	AC 220V±10% 50Hz
Output Power	75W
Working Environment	0 ~ 40℃ relative humidity < 80%
Storage Environment	-20 ~ 80℃ relative humidity < 80%
Dimensions	14.5128CM
Weight	2KG
Work Voltage	AC 26V±10% 50Hz
Temperature Range	200℃ ~ 450℃
Temperature Stability	±10℃ (Static)
Display Type	936A: NO937D : Red/green LED display
Heating Elements	Common metal heater
Tip to Ground Impedance	< 2Ω
Tip of Ground Voltage	< 2mV

Standard Configuration
Machine Unit: 1set
Soldering Iron Handle (include iron tips and heater): 1pc
Iron Holder: 1pc
High Temperature Resistant Sponge: 1pc
Manual: 1pc
Power Plug: 1pc

Related Names
Digital Soldering Tool | Pencil Soldering Iron Kit | Printed Circuit Board Desoldering Station
