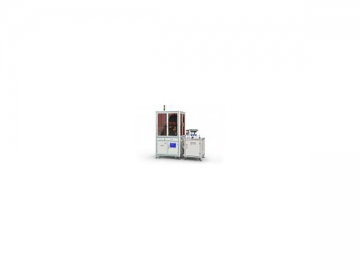

Automatic O-ring Optical Sorting Machine
Request a Quote
Types: Glass plate optical sorting machine

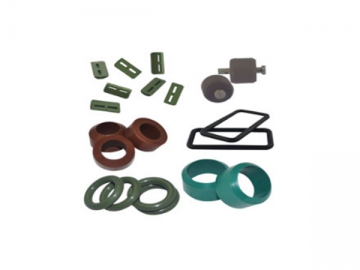

Suited for: O-rings, rubber products and similar parts

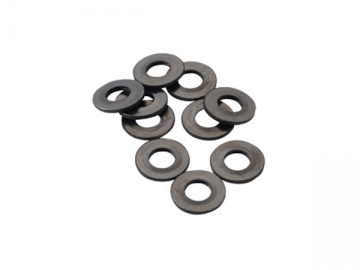

Inspecting products

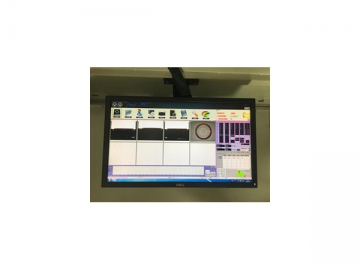

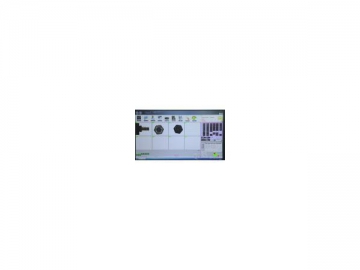

Inspection Screen
This inspection machine comes equipped with two high-precision industrial CCD cameras. The CCD1 is a head-up camera used for inspecting the thickness of products. The CCD2 is a vertical top view camera used for inspecting the inner diameter, outer diameter, and other parameters of each product. The CCD3 is a vertical top view camera used for inspecting for any appearance defects such as burrs and missing material.

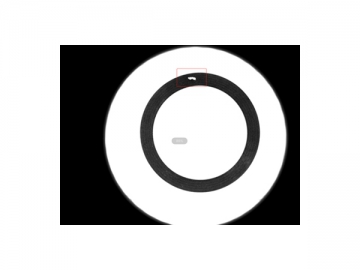

- Fracture
- Burr
- Perforation
Technology parameters:
| Model | RK-1500 |
| Head Outer Diameter (mm) | 1-25 |
| Head Thickness (mm) | 1-15 |
| Total Height (mm) | 1-25 |
| Inspection Accuracy | ±0.01mm |
| Air Pressure (Kg/cm²) | 5 |
| Host Computer | Industrial PC |
| Digital Camera | Industrial CCD |
| Net Weight (KGS) | 650 |
| Dimension (mm) | 1350*1100*1800(LWH) |
Features

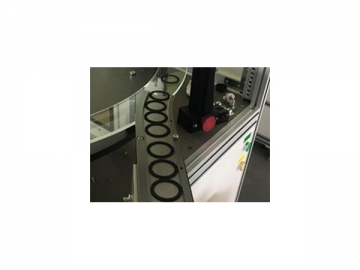

- Due to the high transparency of glass, this machine can inspect all the products which can be placed stably on the glass platform.
- 2 to 6 additional CCD cameras can be installed according to the inspection parameters on your checklist.
- The inspection and sorting speed depends on the feeding system, up to 500-1200 pieces per minute.
- An automatic counting and packing machine and automatic feeder can be added according to your requirements.
- Parts can be quickly and easily changed.
-
- Strong versatility
This machine can inspect various products. You only need to change the vibration plate or track.
The preparatory work for inspecting a different type of product only requires about 30 minutes depending on the skill level of the operator.
-
- Inspection software supports multiple languages
Inspection software supports multiple languages, including Chinese, English, Japanese (Some functions still use Chinese language).
-

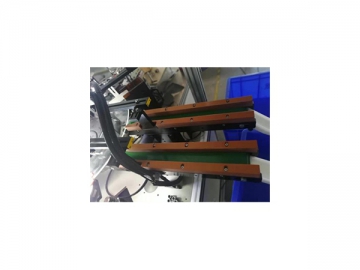

- Conveyor belt blanking
Due to some products that are difficult to move and easily stick to surfaces, a standard outlet may not be suitable for the blanking of the products. This machine uses a conveyor belt to transfer the products to ensure effective blanking.
Optional accessories
- Vibration bowl
- Feeding elevator
- Automated conveyor system
