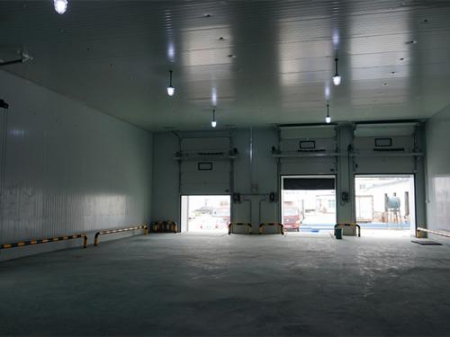

Refrigerated Warehouse for Meat
The client contacted Haocool about constructing a refrigerated warehouse for meat at the beginning of 2017. They chose Haocool to complete the refrigeration equipment and thermal insulation parts of the project.

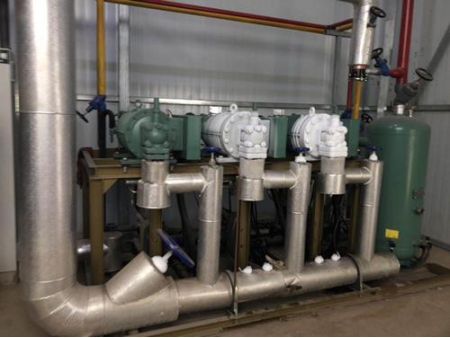

Haocool decided to use a Bitzer brand compressor as the main refrigeration unit. The unit can automatically start and stop, and it also has the function of energy regulation. In order to improve the security, the compressor has the function of high pressure protection, low pressure protection, oil pressure difference protection and temperature protection.
If the refrigerated warehouse for meat begins working abnormally, it has the function of automatic protection with an emergency shut down. It also alarms in real time to alert the user.
-
Aisle width: 4m
-
Refrigerated warehouse height: 5m
| Refrigerated warehouse capacity | 3000m2, including 8 rooms | Storage capacity | 3000 tons |
| Storage cargo | Meats | Cargo handling method | Pallet truck |
| Height of refrigerated warehouse | 5m (Clear height) | Cargo storage method | Tray |
| Construction time | April 2017 | Construction period | 2 months |
| Refrigerated warehouse classification | Low temperature storage, rent | Building structure | Steel |
| Design temperature | -18~-25℃ |
| Refrigerating unit | Bitzer brand compressor with the power of 35kw |
| Voltage | 380V-415V/3 phase /50-60hz |
| Condensation method | Evaporative condenser |
| Evaporation method | Aluminum calandria |
| Defrosting method | Hot fluorine gas defrosting |
| Liquid supply method | Barrel pump liquid feed |
| Freezing medium | Environmentally friendly freezing medium |

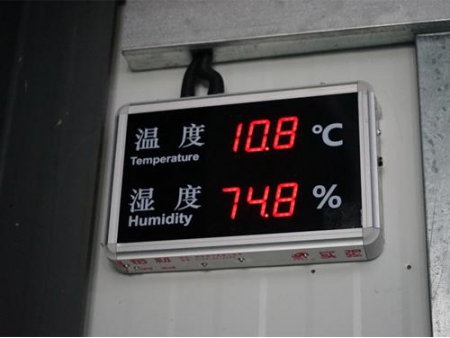

| Electronic control method | PLC long-distance intelligent control, real-time inspect: cold storage warehouse temperature, draught fan operating state, defrosting state |
| Refrigerated warehousethermal insulation | 150mm thickness polyurethane double-sided colored steel thermal insulation board |
| Refrigerated warehouse door | Manual single leaf sliding door |
