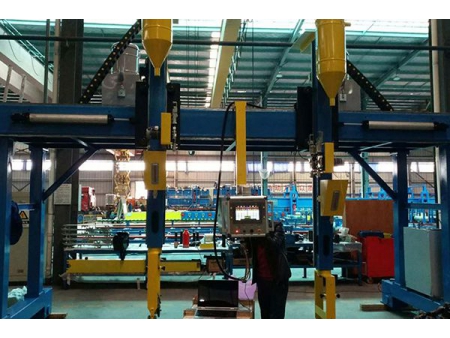

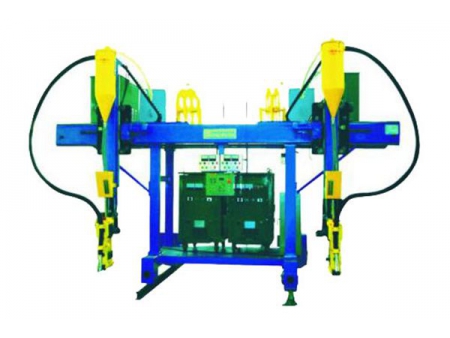

Gantry Submerged Arc Welding Machine JLH
Our gantry submerged arc welding machine is applicable to the box column welding line. It is a good substitute for cantilever submerged arc welding machine, and can perform submerged arc welding task after CO2 welding. Single-pole or multi-pole welding is available for you to choose. In order to meet different requirement, we have designed replaceable welding torch parts for "H" or "T" profile steel. Our welder has many advantages, such as simple structure, reliable performance, high automation, and convenient maintenance. Currently our gantry submerged arc welding machine is increasingly used in many industries, such as construction, chemical, shipbuilding and machinery manufacturing etc.

Technical Specifications for Gantry Submerged Arc Welding Machine
Item Parameter
Suitable section size of box column Thickness 16-80mm
(300-1200)×(300-1200)mm
Suitable section size of H –profile steel Thickness 16-60mm
Width of web plate 200-1800mm
Width of wing plate 200-800mm
Welding speed 0.22-2.2m/min
Return speed 2.5m/min
Total power 8.5kw

Thank you for visiting our website! Jinggong Science & Technology is a manufacturer and supplier of gantry submerged arc welding machine with over 50 years of experience. We specialize in the production of steel structure machines such as box column welding machine, digital folder, slitting machine, and cut to length machine etc. Our products are ISO9000 and CE certified, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more. We look forward to serving you. Please contact us for more information.
