50011 Metric Standpipe Straight Fittings
Request a Quote
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric standpipe straight fittings
- Carbon steel metric standpipe straight fittings

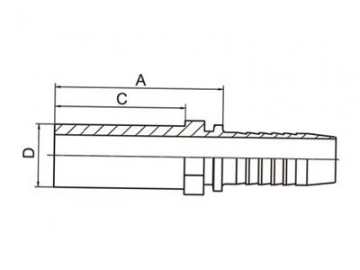

| Part No. | Tube O.D. | Hose Bore | Dimensions | Note | |||
| DN | DASH | A | C | ||||
| 50011-06-04 | 6 | 6 | 04 | 29 | 22 | Light duty series | |
| 50011-10-05 | 10 | 8 | 05 | 31 | 23 | | |
| 50011-12-08 | 12 | 12 | 08 | 33 | 23 | | |
| 50011-15-08 | 15 | 12 | 08 | 35.5 | 25 | | |
| 50011-18-10 | 18 | 16 | 10 | 36.5 | 26 | | |
| 50011-22-12 | 22 | 20 | 12 | 44 | 28 | | |
| 50011-28-16 | 28 | 25 | 16 | 47 | 30 | | |
| 50011-35-20 | 35 | 32 | 20 | 56 | 36 | | |
| 50011-42-24 | 42 | 40 | 24 | 62 | 40 | | |
| 50011-08-04 | 08 | 6 | 04 | 31 | 24 | Heavy duty series | |
| 50011-10-04 | 10 | 6 | 04 | 35 | 26 | | |
| 50011-12-05 | 12 | 8 | 05 | 35.5 | 26 | | |
| 50011-14-06 | 14 | 10 | 06 | 39.5 | 29 | | |
| 50011-14-12 | 14 | 20 | 12 | 45.5 | 29 | | |
| 50011-16-08 | 16 | 12 | 08 | 41 | 30 | | |
| 50011-16-10 | 16 | 16 | 10 | 45.5 | 30 | | |
| 50011-20-12 | 20 | 20 | 12 | 52.5 | 36 | | |
| 50011-25-16 | 25 | 25 | 18 | 57 | 40 | | |
| 50011-30-16 | 30 | 25 | 16 | 63 | 44 | | |
| 50011-30-20 | 30 | 32 | 20 | 64 | 44 | | |
| 50011-38-16 | 38 | 25 | 16 | 69 | 50 | | |
| 50011-38-20 | 38 | 32 | 20 | 70 | 50 | | |
