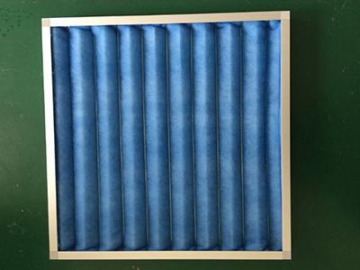

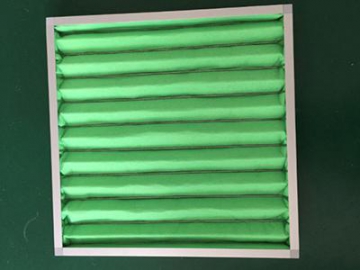

G4 Coarse Air Filter

G4 Coarse Air Filter
G4 Coarse Air Filter
G4 Coarse Air Filter
Request a Quote
Application

The G4 plate type coarse air filters are mainly for filtering particle ranging from 1 micron to 10 microns in size, its filtering efficiency are within to 40 to 60%, suitable as air conditioning coarse air filter, or preliminary filter for medium efficiency air filter and HEPA, to prolong the their shelf.

Parameter
Filter classification Size (mm) L*W*H Air quantity (m³/h) Resistance (Pa) Filter element surface area (m2)
Standard Large air quantity Standard Large air quantity
G4 290×595×23 600 1200 20 60 0.40
493×341×23 550 1100 0.39
493×366×23 625 1250 0.43
493×391×23 650 1300 0.45
493×493×23 800 1600 0.56
Features
  • The G4 coarse air filter does not contain chemical adhesive, do not burn easily when in contact with fire, heat resistant up to 100℃.
  • The air filter can perform well even after multiple washing, thus saving cost.
