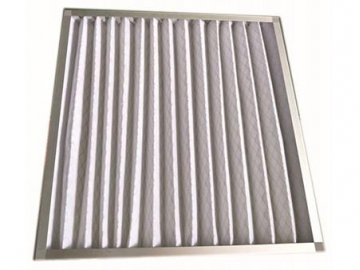

G3 Nonwoven Coarse Air Filter

G3 Nonwoven Coarse Air Filter
G3 Nonwoven Coarse Air Filter
Request a Quote
Application

The G3 pleated nonwoven coarse air filter is used primarily for filtering particles that are 5um in size. This filter uses a folding method to increase its surface area, thus giving it a filtration surface that is 5 times more than a flat surface filter. These air filters are often used in commercial and industrial ventilation systems, cleanroom air recycling systems and more.

Parameter
Filter classification Size (mm) L*W*H Rated air flow quantity (m³/h) Initial resistance (Pa) Filter efficiency Outer frame Filter element Protective cover
G3 295×295×46 800 25 80% Paper;aluminum alloy; Galvanized sheet; Stainless steel, optional Non-woven fabric Galvanized iron mesh; melt blown iron mesh optional
495×495×46 2200
595×295×46 1600
595×495×46 2700
595×595×46 3200
Features
  • The filtering element protective cover is galvanized in order to prevent rust. It is also capable of solidifying the filter element's position, and prevents usage deformation.
  • This filter uses a high quality chemical fiber non-woven filter element, and features a high air flow quantity, low resistivity, large dust storage.
