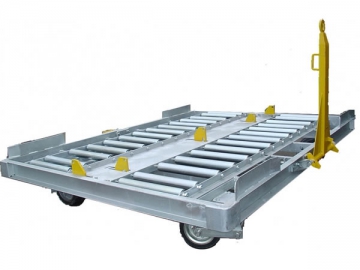

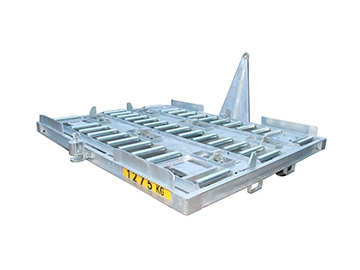

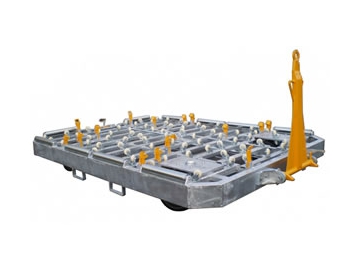

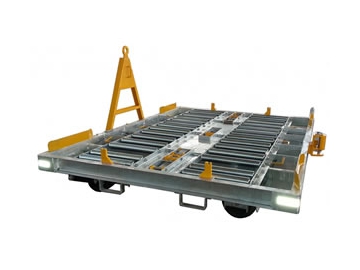

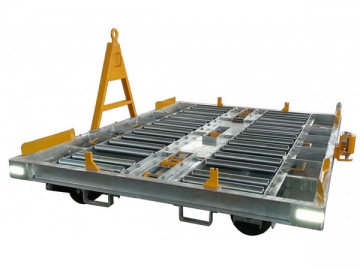

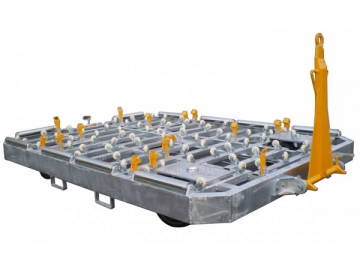

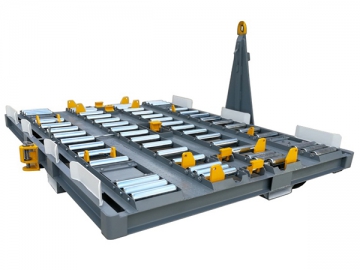

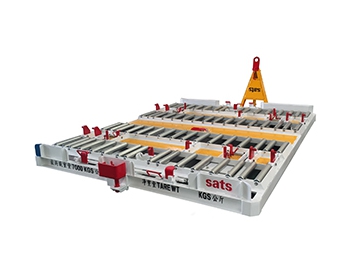

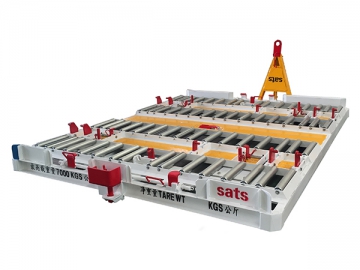

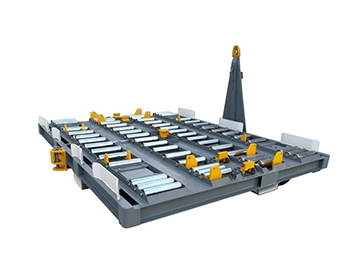

The 10FT pallet dolly for airport cargo is designed especially for airport container or pallet loading, unloading and transporting. The dolly is labor saving, safe and quick for cargo transporting. It also offers strong loading capacity and flexible rotation. It is suitable for airports, railway stations and other places for transporting cargo pallets, large cargo containers, and cabinets, etc.

This pallet dolly can handle 125’’X 96’’, 125’’x88’’ and 108’’x88’’ cargo pallet, plus P1P, P6P , LD1, LD3 and LD8 cargo container.

Features
1) With swivel casters, this pallet dolly is adjustable in multiple directions, making the operation more flexible.
2) The whole dolly is made of high quality steel to be sturdy and durable. It also has large loading capacity of as much as 7000kgs.
3) When the tow-bar is upright or released, the braking is automatically applied to keep safety.
4) The roller helps to put the heavy cargo on the pallet dolly. It also has a strong bearing capacity and the whole roller bed can load at least 7000kgs.
5) This dolly is convenient to maintain.
6) The walkway adopts a anti-slipping steel plate. The main moving parts use anti-wear alloy bushings with galvanized surface to be rust-proof.

Custom service
1) Logo can be printed base on clients’ requirements.
2) The surface can be painted or galvanized.

Model HD-P011703
Overall dimension 3660 x 3460 x570 mm
Working platform size 3460x 2660 x 510 mm
Roller bed height 508– 515 mm
Payload 7000 kgs
Own weight 1150 kgs
Max. Towing speed 25 km/h
Roller row number 2 rows
Steering Swivel castors steering
Loading 96" sides loading
Model HD-P011704
Overall dimension 5023x2600x571 mm
Working platform size 3300x2600x510 mm
Roller bed height 508– 515 mm
Payload 7000 kgs
Own weight 1350 kgs
Max. Towing speed 25 km/h
Roller row number 4 rows
Steering Bearing turntable steering
Loading 125" sides loading
Model HD-P011707
Overall dimension 4137x3460x560mm
Working platform size 3460x2610mm
Roller bed height 508–518mm
Payload 7000kgs
Own weight 1150kgs
Max. Towing speed 30 km/h
Roller row number 2 rows
Steering Swivel castors steering
Loading 96" sides loading
Model HD-P011708
Overall dimension 4740x2675x560mm
Working platform size 3505x2675mm
Roller bed height 508–518mm
Payload 7000kgs
Own weight 1150kgs
Max. Towing speed 25 km/h
Roller Heavy duty universal guiding wheel and roller
Steering Swivel castors steering
Loading 125" sides and end loading
Model HD-P011709
Overall dimension 4084mmx3356mmx560mm
Working platform size 3356mmx2620mm
Roller bed height 508mm-518mm
Payload 7000 kgs
Own weight 1275 kgs
Max. Towing speed 25 km/h
Roller row number 3 rows
Steering Swivel castors steering
Loading 96" sides loading
Model HD-P011710
Overall dimension 4170mmx3390mmx598mm
Working platform size 3390mmx2640mm
Roller bed height 508mm-518mm
Payload 7000kgs
Own weight 1460kgs
Max. Towing speed 25 km/h
Roller row number 4 rows
Steering Swivel castors steering
Loading 96" sides loading
