Cargo Dollies/ Container Dollies

  • HD-P011501
  • HD-P011502

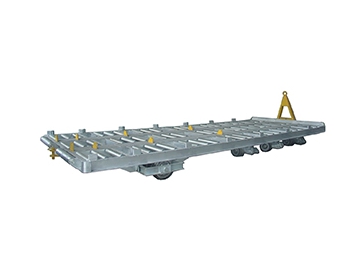

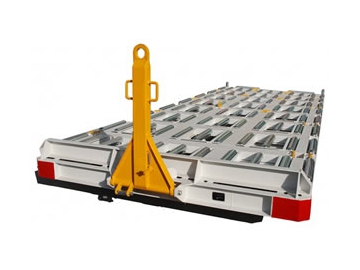

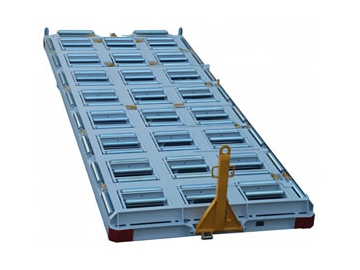

20FT cargo pallet dolly can load 10ft, 16ft and 20ft cargo pallet. Its working surface adopts anti-slipping steel sheet, the main moving parts are heavy-duty galvanized rollers with the features of large loading capacity and rust protection.

Features
1) This pallet dolly is entirely made of high-quality steel. It is sturdy and durable, and it can load as much as 18000kgs. MIG welding technology makes the dolly beautiful and durable.
2) This dolly can break in time as soon as the tow-bar is upright.
3) The wheel is movable to adjust the direction freely. This ensures flexible operation.
4) The dolly is easy to maintain.

Custom service
1) We can print the logo following clients’ requirements.
2) This pallet dolly surface can be painted or galvanized.

We provide 20FT cargo pallet dolly with the following specifications.

Overall dimension 7983mm x2720mm x570mm
Working platform size 36496mm x 2720mmx520mm
Roller bed height 510mm – 520mm
Payload 18000kgs
Own weight 3200kg
Max. Towing speed 25 km/h
Tyre Front wheel:266x160 solid tyre;
Rear wheel: 400x133 solid tyre
Loading End loading
Overall dimension 8155mm x2643mm x611mm
Working platform size 6910mm x2643mmx536mm
Roller bed height 536mm
Payload 18000kgs
Own weight 3500kg
Max. Towing speed 20 km/h
Tyre Front wheel: 266x160 solid tyre;
Rear wheel: 400x133 solid tyre
Loading Long sides loading or end loading with the indexing roller cells
