Hydraulic Butt Fusion Machine, WP1200A
1000mm-1200mm Plastic Pipe Welding Machine
The butt fusion machine is ideally used for butt welding of HDPE, PP, PVDF, MPP pipes and fittings.
- Model: WP1200A
- Welding range: 1000-1200 mm
- Applicable pipe diameters: 1000-1100-1200 mm
- Power supply: 380 V/50Hz, 3PH
- Total power: 30.5 kW
- Heating plate: 22.5 kW
- Planing tool: 4 kW
- Hydraulic station: 4 kW
- Pressure adjusting range: 0-16 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±7 ºC
WELPING hydraulic butt fusion welding machines are ideally suitable for welding HDPE, PP, PVDF, MPP pipes.
-
-

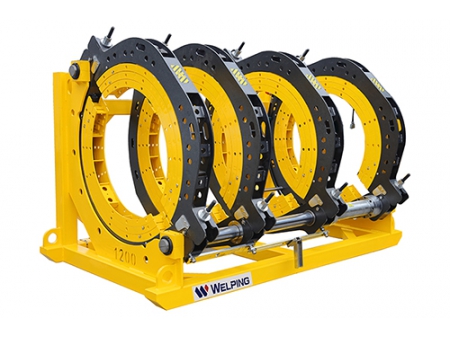

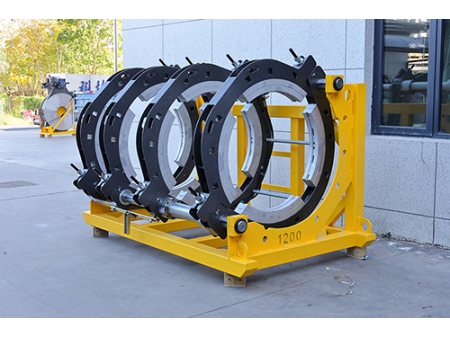

The pipeline butt welding equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.
-
-
The butt fusion machine frame features high strength, outstanding precision, and lighter components weight for lower work load and better welding performance.
-
-
The hydraulic station is designed with an enclosed structure to prevent inside components from dirt or water. LCD display panel and data logging device are optional upon request.
-
-

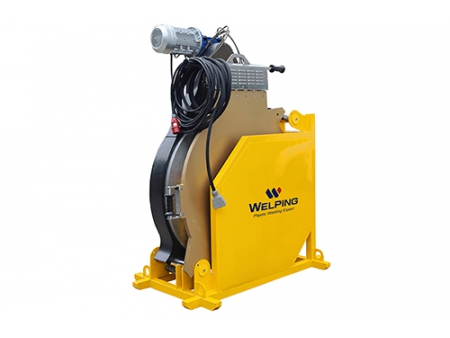

Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.
-
-

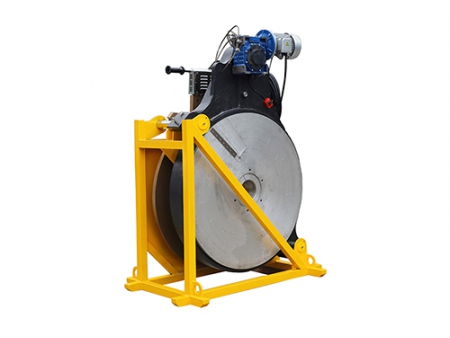

High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.
