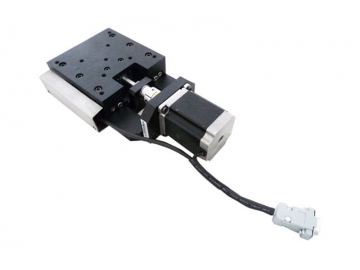

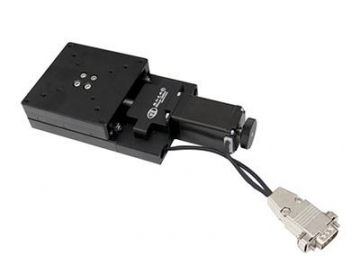

WN230TA(50-500)M High Precision Linear Motor Stages is suitable for providing linear displacement by electric control in automatic displacement control in scientific research, full-automatic measuring and testing equipment, industrial automation and other fields. This positioning device has a wide travel range from 50mm to 500mm with 3 kinds of load capacity (20kg, 30kg and 50kg).

Parameter table of WN230TA(50-500)M High Precision Motorized Linear Stage
Model WN230TA50M WN230TA100M WN230TA150M WN230TA200M WN230TA300M WN230TA400M WN230TA500M
Travel 50 mm 100 mm 150 mm 200 mm 300 mm 400 mm 500 mm

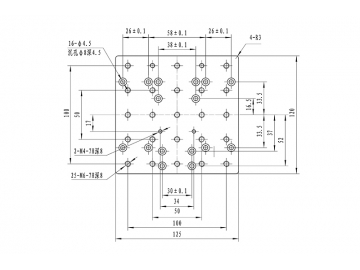

Table Size 120×125mm 120×125mm 120×125mm 120×125mm 120×125mm 160×160mm 160×160mm
Screw Type Precision ball screw (lead 4mm) Ball screw (lead 5mm)
Stepper Motor (1.8°) STP-57BXG152
Load Capacity 20 kg 30 kg 50 kg
Weight 2.8kg 6kg 6.5kg 7kg 7.5kg 8kg 8.5kg
Resolution 20μ(Non-MS driver) 1μ(20 MS driver) 25μ (Non-MS driver)
1.25μ (20 MS driver)
Maximum Speed 40mm/sec 50mm/sec
Repeatability
Positional Accuracy
Straightness
Driving Parallelism 10µ 15µ 20µ
Pitching 25″ 50″ 60″
Yawing 20″ 25″ 30″
Backlash
Runout









Features of WN230TA(50-500)M High Precision Motorized Linear Stage
  • Light weight with aluminum alloy material, blackened by anodic oxidation, suit for low vacuum environment.
  • High precision ball screw drive, great repeatability and positional accuracy, small axial clearance and long service life.
  • Stable and high load capacity with precision linear slide guide. Suit for single axle load or multi-axis combination.
  • Reduce the pitching and yawing of the motorized stage through the reasonable mounting of the base plate and the guide, so as to effectively improve the straightness and driving parallelism.
  • Realize high speed and high load by adding servo motor and closed-loop control of linear scale.
  • Dustproof cover and power-off brake could be added for the linear stage.
