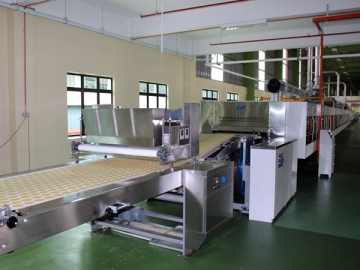

As a leading bakery equipment manufacturer, we offer snack food makers an extensive range of biscuit production lines and various individual biscuit machines for the line. The dough forming machine presented on this page is one of the essential food machines for our biscuit production line. It is used to cut dough into chunks or smash it, then press them into dough sheets, and finally form biscuit shaped dough.

This dough forming machine is composed of a series of food processing equipment such as laminator, three-color dough sheeter, large dough conveyor, three gauge roll feeder, gauge roller unit, rotary molder, double color wire cut machine, belt type salt and sugar sprinkler, and liquid egg spraying machine.

  • Vertical Laminator
  • Cut-sheet Laminator
  • Horizontal Laminator

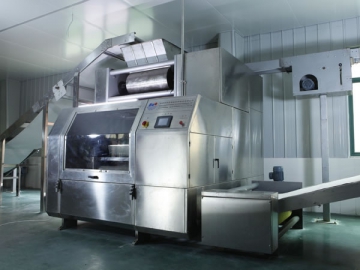

The dough sheet laminator is a type of food machinery with stainless steel construction. It is divided into a vertical laminator, horizontal laminator and cut sheet laminator. The cut sheet laminator makes sure that each dough sheet can be scattered with powder, improving quality and taste of hard biscuit. This laminator is important food processing equipment for fermented soda biscuits.

Technical Parameter of Cut-sheet Laminator

ItemsSpecifications
Power supply3-380V, AC
Motor power12Kw
Laminating layers4-10 layers (adjustable)
Thickness of laminated dough sheet2-15mm (adjustable)
Powder scattering deviceStainless steel mesh belt type powder scattering machine (or double-roll powder scattering machine)
Control typeUser interface control, frequency control, single machine control, joint control
Control motor for sheet cuttingJapan Sanyo servo motor.
Operating methodTouch screen
Electrical device brandFrance Schneider
Housing materialδ 2mm 304 stainless steel
Transition support board material304 Stainless steel
  • Three-color painting machine
  • Three-layer dough sheeter

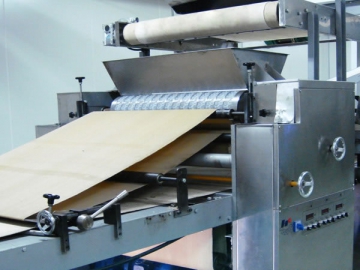

The three-color dough sheeter is used for making three layer and three color dough sheets and conveying them to the next process. If it is not used for making three color biscuits, you can directly feed dough into the dough sheeter.

The large dough sheet conveyor is used for receiving the dough sheets transported from the feeder.

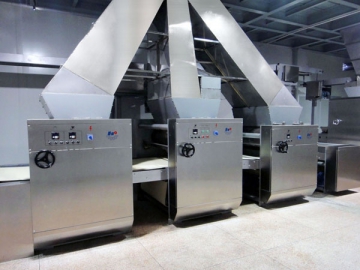

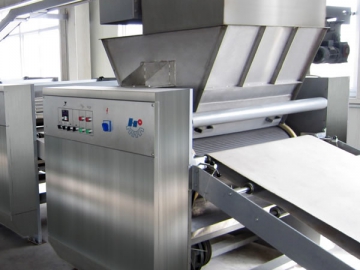

Our dough forming machine comes with a three gauge roll feeder which is used for feeding dough sheets transported from the top side.

Technical Parameter

ItemsSpecifications
Calendaring thickness range3~30 mm
Adjustment method of roll seamAdjusted by motor-driven screw lifting device
Control methodFrequency control of motor speed
Roller materialChilled alloy
Operation methodTouch screen
Converter brandFrench Schneider
Housing materialStainless steel

Molder

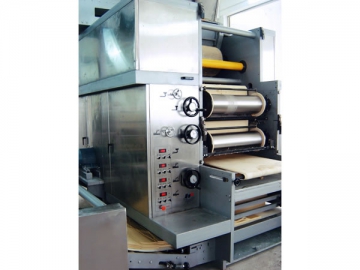

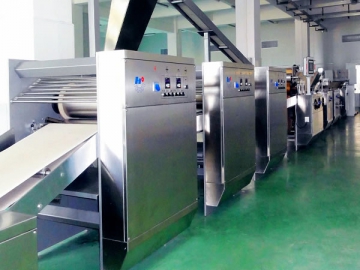

Through this gauge roll unit, the prefabricated dough sheets will be made into the required thickness. Rolling speed and transporting speed of each individual gauge roll can be independently controlled, ensuring easy and flexible operation.

Technical Parameter

ItemSpecifications
Calendaring time3
Roller diameterφ 320mm
Calendaring thickness range0.3~20 mm
Control methodFrequency control of motor speed
Roller materialChilled alloy
Roller bearing brandJapan NSK
Operation methodTouch screen PLC frequency converter, with memory and breakdown feedback function
Converter brandFrench Schneider
Housing materialStainless steel
Transition support board materialStainless steel

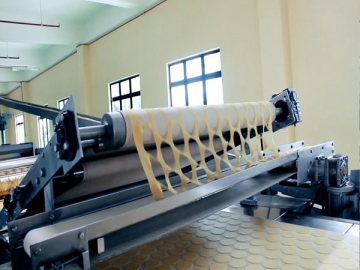

Roller Cutting Machine

The roller cutting machine is used for cutting out biscuits. It is composed of a porcupine or embossing roller and a cutting roller. It features high speed and low noise, and can meet the requirement for maximum production capacity.

  • Feeding from the second floor
  • Rotary moulder

Soft dough will be directly fed into the horizontal rotary molder after being rolled in the roll feeder. The endless belt ensures a 100% qualified rate. It features dual power with frequency control. Distance between feeding rollers is adjusted by hand wheel.

Technical Parameters

ItemsSpecifications
Motor number2
Wrap angle adjustment methodAdjustable
Operation methodTouch screen
Converter brandFrench Schneider

The wirecut machine can be used with different biscuit production lines. It carries out joint control and single control by advanced frequency converter, and feature fast cutting speed, high production capacity and excellent quality.

The belt type salt and sugar sprinkler is mainly used for sprinkling salt and sugar powder on to the biscuits. To be specific, salt, sugar, sesame and other materials can be conveyed out of the hopper by belt and then sprinkled on the biscuits after scattered. The quantity of salt and sugar to be sprinkled is adjustable. The sprinkling quantity can be adjusted relying on the speed of the belt conveyor.

Technical Parameters

Speed control methodFrequency control
Converter brandJapan Panasonic
Conveyor materialPVC belt with conducting bar
Cover & frame materialStainless steel
  • Segregating unit
  • Rim charge recycler
  • Syrup and liquid egg spraying machine
