LDLS-026

Technical Parameters

Model LDLS-026
Name Pulley Machine
Place of origin Dezhou, Shandong, China.
Dimension (mm) 2100*1360*1710
Standard steel weight stack 100kg
Net weight 280kg
Lead time 30days

Main Muscle Worked: Mid Back Muscle, Shoulder, Upper Body

Main Features of the Strength Equipment
1. Unique shape: the appearance of the strength training machine is designed like a land ship; flat oval pipe is adopted
2. LDLS series is an assembly of all of the common muscle training equipment, with 20 single-functional training devices included.
3. The reasonable moving track and movement structure will satisfy the exercise requirements of different groups of people
4. Our consideration of ergonomics and human factors adds to the fitness equipment's effectiveness.
5. The monitor with auto counting function displays the time intuitively, helping to enhance users' comfort greatly.

Technical Parameters
Cable inner metal diameter: 4.8mm; outer thickness: 1.2mm
Square tube 50*150mm; thickness: 3mm; high strength steel tube and internally lubricated cables
Pulley Aluminum
Welding technique OTC welding
Certificates CE, ISO9001, RoHS
Customization service available
Powder coating 2 rounds (silver/ black/ dark grey/ white/ red)
Painting color optional
Applications gym, exercise club, hotel gym
Tire PU foam with synthetic leather
Weight stack made of steel
Material Q235 steel; 60*120*3mm

Details of the Gym Strength Equipment

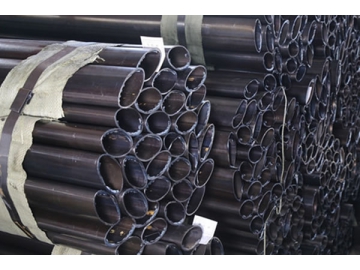

High-strength stainless steel flat oval tube

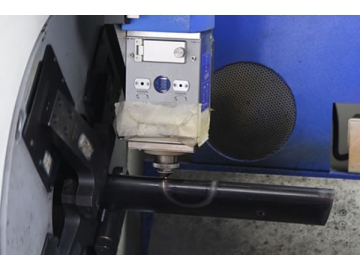

All of the machine parts are cut precisely
Steel cable and pulley
The Handles
Seat and backrest
The part for placing bottles
Fitness indicator
Weight stack with magnetic pin

1. The frame
● Streamlined design with 50*150*2.5mm high-strength stainless steel flat oval tube
● The frame is welded on the steel base directly to ensure the system' s stability
● With the intention of both protecting the floor and preventing slipping, we especially set a rubber mat under the base
● All of the machine parts are cut precisely
● At the welding point, a meticulous polishing is given to ensure the aesthetics
● Powder coating treatment is required to enhance the durability of the fitness equipment
● Lightweight steel weight stack and smooth electroplated slider

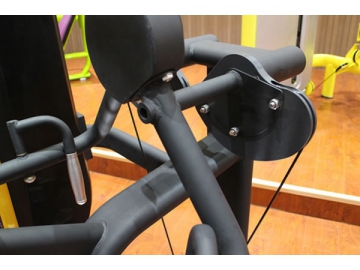

2. Steel cable and pulley
● 7*19 military steel cable covered by Nylon, with lubrication device equipped
● The glass fiber made pulleys with diameter of both 12cm and 15cm are prepared.

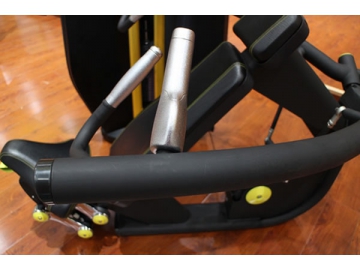

3. The Handles
● The rubber compound handle is resistant to sweet and abrasion
● Aluminum casting technique is adopted

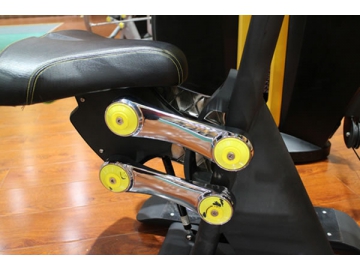

4. Seat and backrest
● EVA foam injection molding technique is employed for the cushion to prevent deformation
● All of the edges are folded and sewed to add to the cushion' s durability

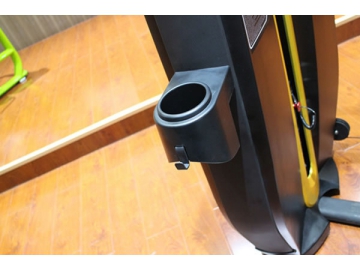

5. The part for placing bottles
For our gym exercise equipment, Land Fitness had learnt from Germany for the fashionable and prudent designing concept. The buffer structure with torsion spring, and the multi-gear leg press foam makes it suitable for different people. With the considerate part for placing bottles, users are able to replenish water at any time.

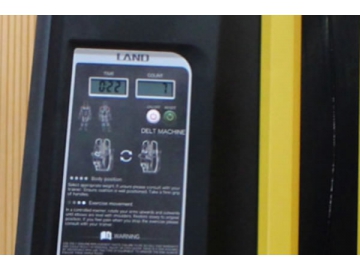

6. Fitness indicator
We have set a fitness indicator for our strength equipment to guide the users with proper training methods.

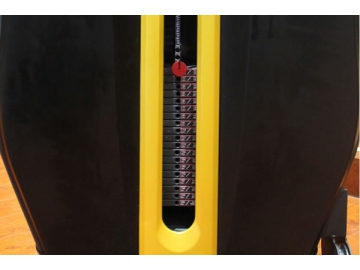

7. Weight stack with magnetic pin

8. Rubber mat under the equipment
