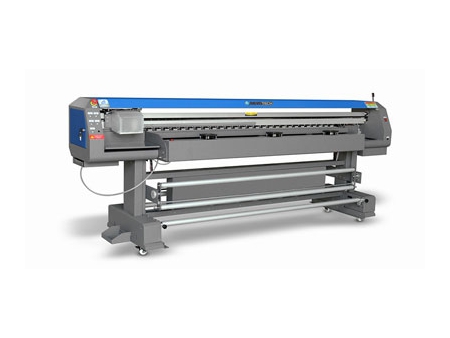

M-330XS 512i 30PL Solvent Printer

M-330XS 512i 30PL Solvent Printer
Request a Quote

Basic information:
Print head: KONICA 512I 30PL
Color: CMYK
Max resolution: 720dpi
Max printing speed: 280 sqm/hr
Max printing width: 3.2m (126inch)

Product features:
1. The M-330XS 512i 30PL solvent printing industrial printer is equipped with an automatic media feeding and collecting system and double vinyl feeding and collecting systems.

2. Positive pressure cleaning is used in the print head cleaning system to keep the print head working in optimal condition. The anti-clogging flash function can resist blocking and the print head sprays a small amount of ink at regular intervals to keep the nozzle wet, wash the blocks away, and allow for a more fluid release of ink.

3. A print head heating system is installed to prevent ink from breaking down. By keeping the temperature stable, the ink is kept in a stable working condition during the printing process.

4. Siphon ink supply system ensures ink is released fluidly and provides qualified output under high printing speeds.

5. The fabric pinch rollers arrangement is denser compared to common printers and provides uniform pressure and stronger friction force, so cloth steps into machine with minimal outside interference.

6. The printer is equipped with a large sectional infrared drying device, in which the ink on the cloth dries immediately during the high-speed printing process.

7. Duel rail structure and high-accuracy AC servo motor are applied for stable carriage operation during printing.

Application:
1. The M-330XS 512i 30PL solvent printing industrial printer is suitable for processers requiring large printing outputs.

2. Paper, advertisement light boxes, PVC, mesh, and gummed paper sheet are all printable surfaces for the industrial printer.

3. The advertisements printed with the printer can be presented in restaurants, stores, gyms, airports, underground stations, high-speed rail stations, highway ad billboards and bus advertisements.

Parameters:
Print head KONICA 512I 30PL
Number of Print Head 4 8
Maximum Print Width 3.2m (126inch)
Print Speed Draft Model 140 sqm/hr 280 sqm/hr
Standard Model 110 sqm/hr 220 sqm/hr
Ultra Model 80 sqm/hr 160 sqm/hr
Color CMYK
Maximum Print Quality 720dpi
Image Format Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF
Color Management Superior ICC Profile
Work Flow RIP and Print simultaneously/Print after RIP
Print Interface USB2.0
Ink Type Solvent Based Ink
Software Photo Print, Revotech Edition
Work Station Windows 10 or Windows 7
Operating Environment 220V~(+10%)>15A,50Hz/60Hz

Our company is a leading wide format solvent printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
