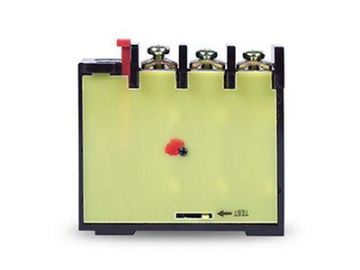

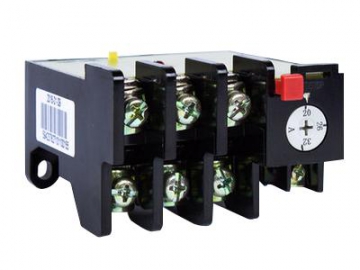

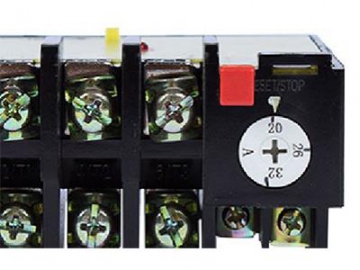

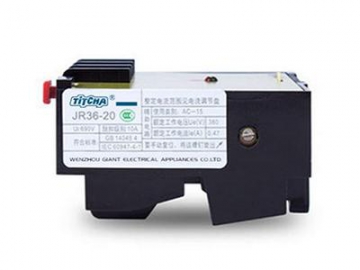

JR36 Series Thermal Overload Relay

JR36 Series Thermal Overload Relay
JR36 Series Thermal Overload Relay
JR36 Series Thermal Overload Relay
JR36 Series Thermal Overload Relay
JR36 Series Thermal Overload Relay
JR36 Series Thermal Overload Relay
Request a Quote

The JR36 thermal overload relay is a specially designed electrical device that provides reliable overload and phase failure protection for AC motors under long-term or intermittent long-term operation at AC 50/60Hz with a rated working voltage up to 690V, and current of 0.1A-93A.

The overall current is continuously adjustable, while automatic reset and hand reset are optional, and it comes with a test button and pause button.

Parameters
Model Rated current Fuses meet IEC60947-4
"1" With "2" With
JR36-20 0.25~0.35 63 1.6
0.32~0.50 63 1.6
0.45~0.72 63 2
0.68~1.10 63 4
1.0~1.6 63 6
1.5~2.4 63 6
2.2~3.5 63 10
3.2~5.0 63 16
4.5~7.2 63 16
6.8~11 63 25
10~16 63 35
14~12 63 50
20~32 100 63
JR36-63 14~22 160 50
20~32 160 63
28~45 160 100
40~63 160 160
JR36-160 40~63 250 160
53~85 250 160
75~120 315 224
100~160 315 224
Dimension
