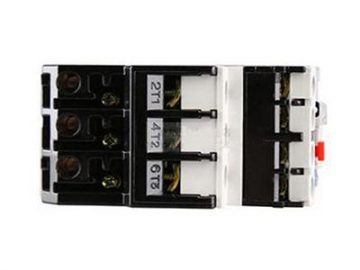

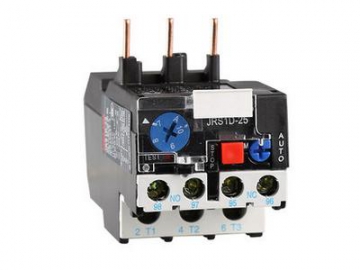

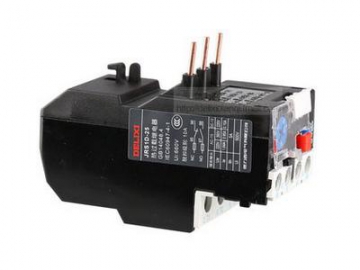

JRS1D Series Thermal Overload Relay

JRS1D Series Thermal Overload Relay
JRS1D Series Thermal Overload Relay
JRS1D Series Thermal Overload Relay
JRS1D Series Thermal Overload Relay
JRS1D Series Thermal Overload Relay
Request a Quote

Function: The thermal overload relay effectively protects motors from overload and phase loss.

Installation method: stack mounting, stand-alone installation

Features
  • Phase loss protection and ambient temperature compensation
  • The stack mounting method protects users from electric shock during installation and maintenance
  • Continuously adjustable current settings
  • Automatic reset and hand rest available
  • Operation indicator
Parameters
Shell rated (A) Rated current (A) With fuse specifications With fuse specifications Order code
Recommended RT16 Recommended CJX2
25 0.1~0.16 4 -09~32 JRS1D25P16
0.16~0.25 4 -09~32 JRS1D25 P25
0.25~0.4 4 -09~32 JRS1D25 P4
0.4~0.63 4 -09~32 JRS1D25 P63
0.63~1 4 -09~32 JRS1D25 1
1~1.6 4 -09~32 JRS1D25 1P6
1.6~2.5 6 -09~32 JRS1D25 2P5
2.5~4 10 -09~32 JRS1D25 4
4~6 16 -09~32 JRS1D25 6
5.5~8 20 -09~32 JRS1D25 8
7~10 20 -09~32 JRS1D25 10
9~13 25 -12~32 JRS1D25 13
12~18 35 -18~32 JRS1D25 18
17~25 50 -25~32 JRS1D25 25
36 23~32 63 -25~32 JRS1D36 32
30~40 80 -32 JRS1D36 40
93 23~32 63 -40~95 JRS1D93 32
30~40 80 -40~95 JRS1D 93 40
37~50 100 -50~95 JRS1D 93 50
48~65 100 -50~95 JRS1D93 65
55~70 125 -65~95 JRS1D93 70
63~80 125 -80~95 JRS1D93 80
80~93 160 -95 JRS1D93 93
Technical parameters
Temperature compensation 10A -5℃~ +40oC
Trip level 10A JRS1D-25, 36 JRS1D-93
Rated insulation voltage (V) 660V
Dimension
