Eye Link Conveyor belts
Request a Quote

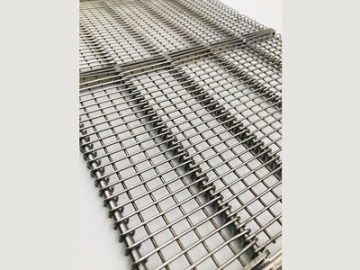

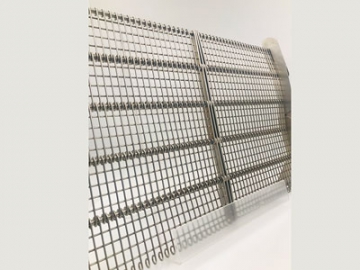

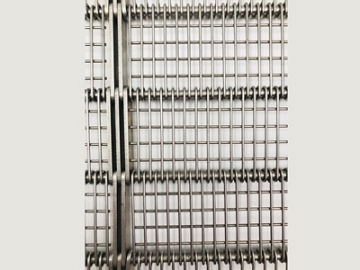

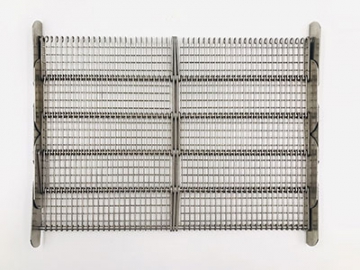

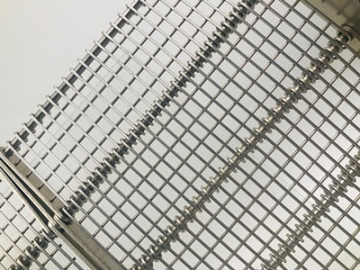

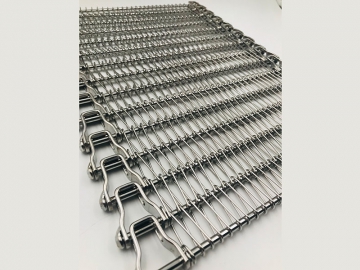

The flat top flush eye link belt is made from wires which have been woven into eyelinks and then linked by cross rods.The flat top flush eye link belts are usually composed of mesh strips, cross rods and chains, or reinforcing chain links. When the eyelink conveyor belt is used, liquid and gas can be easily passed through and cleaned. The eye link conveyor belt adopts food grade stainless steel,can be used in a temperature range of -96℃ to 600℃. The belts are commonly used in freezer equipment, sterilization equipment, drying equipment, filtration equipment, bakery equipment, refrigeration equipment, cleaning equipment, etc.
- The size of the perforation can be adjusted according to the specific purpose.
- Open area: 20% - 90%.
- The conveyor belts are driven by roller chain sprocket to avoid scratching the conveyed objects.

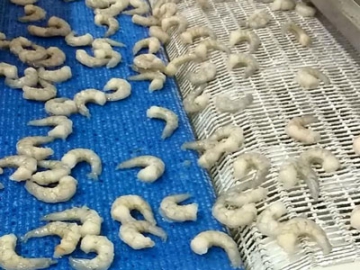

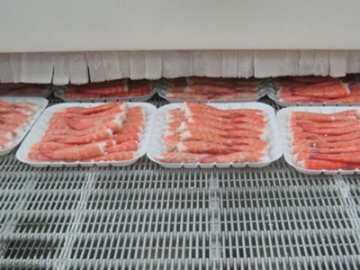

Application
- Cleaning Belt;
- Drying Belt;
- Freezer Belt;
- Sterilization Belt;
- Metal Conveyor Belt;
- Cooling Belt.
Parameters
Material | 304 stainless steels,316 stainless steels |
Chain pitch (mm) | 25.4, 31.75, 38.1, 50.8, 76.2 |
Rod diameter (mm) | 5, 6, 7, 8, 10, 12 |
Wire diameter(mm) | 1.2, 1.5, 1.6, 1.8, 2, 2.5, 3 |
Spiral pitch (mm) | 2.4-100 |
Rod pitch (mm) | 25.4, 31.75, 38.1, 50.8, 63.5, 76.2 |
Belt width (mm) | 200-6000 |
Belt length | customized |
Belt edge | welded |
Sprocket | customized |
Note: above are common specifications, other specifications can be customized according to customer requirements.
Characteristics
- The eye link conveyor belt can be used in a temperature range of -96℃ to 600℃ for its heat-resistance ability;
- The eye link conveyor belt adopts food grade stainless steel, which is safe and durable;
- The wire mesh of the belt is smooth which can bear high load and tensile strength;
- The conveyor belts have good ventilation and the belts are easy and convenient to clean
- The conveyor belts are driven by roller chain sprocket to ensure the service stable and avoid being scratched;
- The dismantling and maintenance of eye link conveyor belt are convenient and timesaving.
