Metal Conveyor Belt Manufacturer

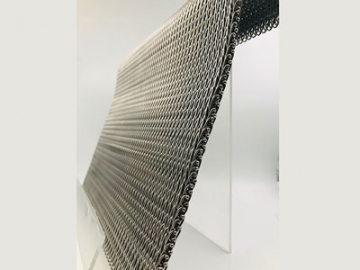

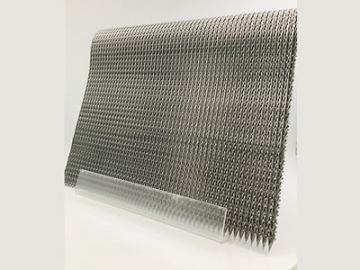

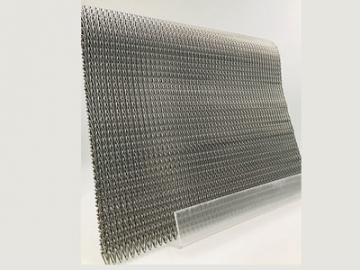

The Cord weave Conveyor Belt also known as compound balanced conveyor belt is a kind of the bilateral spiral structure belt’s variant, the compact and flat wire mesh is formed with left and right spirals. The conveyor belts usually use straight rods, but the crimped cross rod can also be used in some specifications.Because of compact mesh strips, the conveyor belt is suitable for conveying small products, such as nuts, bolts, nails, nail, cookies, chemical particles, etc. (Temperature range:-55℃ to 1150℃)

If you want to lift or separate the products to be conveyed, YiYi can add cross flights and side plates on the cord weave conveyor belts according to your requirements.

Because of compact mesh strips, the conveyor belt is suitable for conveying small products, such as nuts, bolts, nails, nail, cookies, chemical particles, etc.

Application

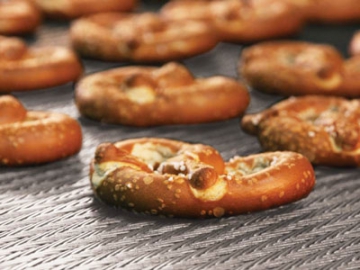

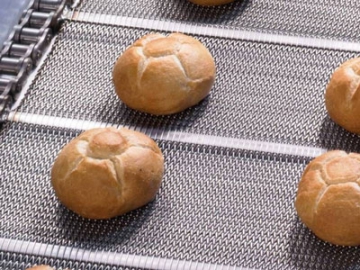

  • Bakery Belt;
  • Heat Treatment Belt;
  • Metal Conveyor Belt.
Parameters
Material carbon steel, 304 stainless steels, 316 stainless steels, 314 stainless steels
Wire diameter (mm) 1.2, 1.4, 1.5, 1.6, 1.8, 2, 2.5, 3
Spiral pitch (mm) 6-20
Rod pitch (mm) 6-20
Belt width (mm) 200-3000
Type CB2, CB3,CB4, CB5

Note: Parameters above are common specifications only, and we offer customization services.

Characteristics
  • The compound balanced conveyor belt is made using a safe, durable food grade stainless steel.
  • The compound balanced conveyor belts can be used in a -55℃ to 1150℃ temperature range due to their heat and cold resistance.
  • The wire mesh of the belt is smooth, and is capable of bearing high load and tensile strength.
  • The dismantling and maintenance of the mesh conveyor belt are convenient and timesaving.
