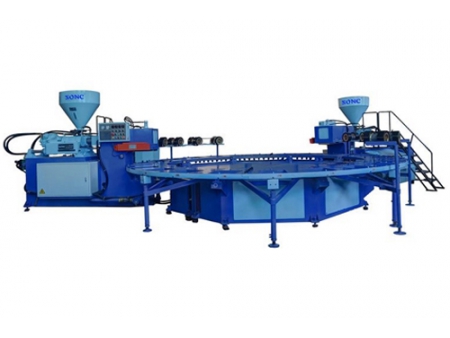

Two Colour Sole Injection Moulding Machine, EB220R/EB224R

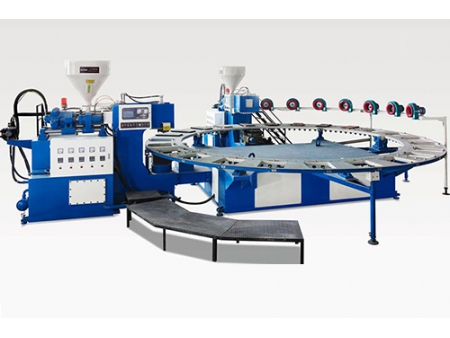

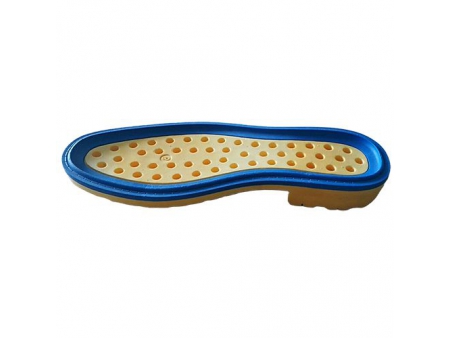

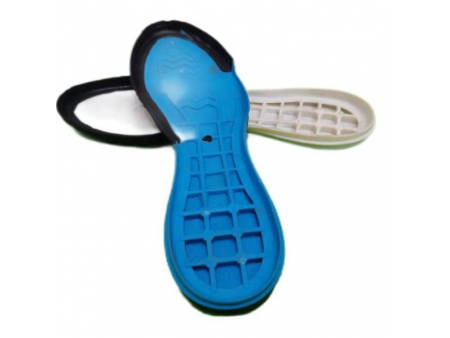

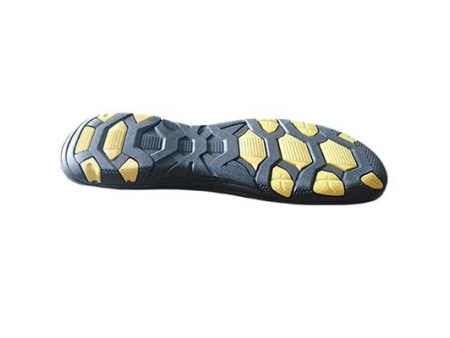

This injection moulding machine is used to produce single-colour and two-colour soles and sole sheets out of TPR and PVC. It is well received by the market since as many as 12 sets of molds have been installed, meaning that 12 pairs of shoes can be produced at a time.
| Item | Unit | | |
| Raw materials | TPR, PVC | ||
| Stations | 20 | 24 | |
| Screw diameter | mm | 75 50 | |
| Maximum injection volume | CC | 880 390 | |
| Injection pressure | MPa | 70 | |
| Clamping force | Tons | 60*2 | |
| Yield | Pairs/hour | 150-280 | 150-300 |
| Mould space | mm | 400*220*190 | |
| Heating power | kW | 9 6.5 | |
| Total power | kW | 50.5 | |
| Dimensions | cm | 920×420×220 | 980×480×220 |
| Machine weight | Tons | 14.6 | 15.8 |
| Oil consumption | L | 600*2 | |
-

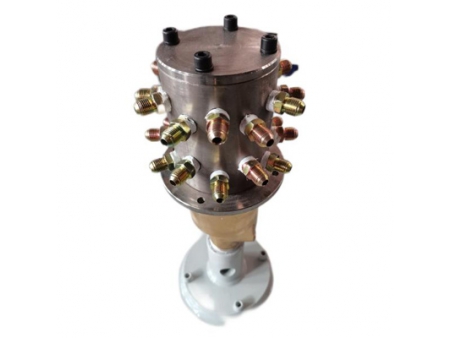

Water cooling system
-

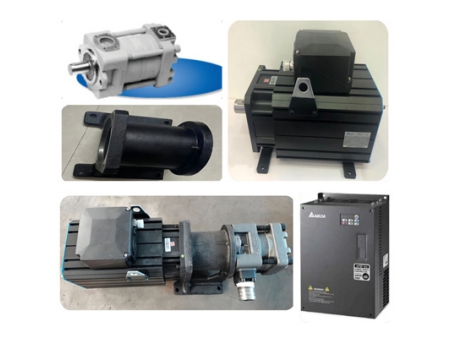

Energy-saving hydraulic servo control system
-

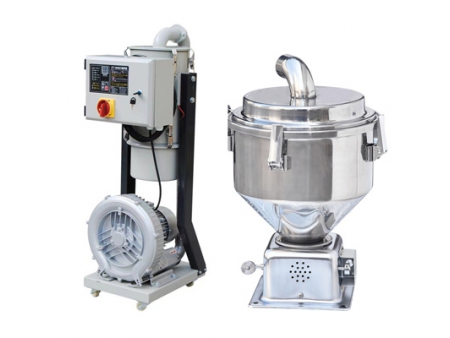

Suction machine
-

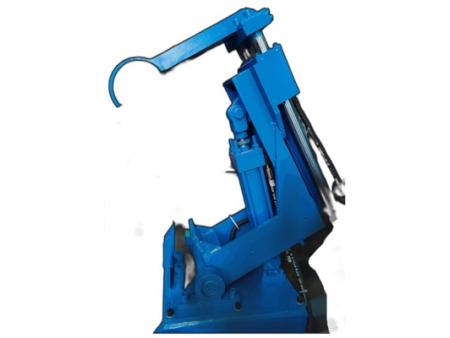

Mould manipulator
- Block cylinder is designed with special structure, providing heat insulation and leakage resistance performance;
-
PLC control system with industrial human-machine interface (HMI) is user-friendly;
-
PLC system
-
PLC
-
HMI interface
-
-
Multiple safety measures are put into use, including:
-
Safety sign
-
Safety signSafety door with photoelectric switch
-
Emergency stop button
-
Rotary table anti-lifting switch
-
-
Hydraulic system is installed to ensure stable and safe operation;
-
2PN mould clamping hydraulic oil circuit
-
Proportional injection hydraulic oil circuit
-
-
Servo motor and automatic mould manipulator;
-
Servo system
-
-
Cooling tower: it cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;
-
Crusher: it recycles used materials;
-
Vertical mixer: it mixes materials with different colours;
| Parts list | ||
| Toolbox | / | 1pc |
| Allen key | 1.5-10 | 9 sets |
| Open-end wrench | 6-24 | 8 sets |
| Phillips screwdriver (small) | / | 2pcs |
| Phillips screwdriver (large) | / | 1pc |
| Adjustable wrench | 250mm | 1pc |
| Heating ring | Ø90*80 mm | 1pc |
| Heating ring | Ø65*50 mm | 1pc |
| Heating ring | Ø120*80 mm | 1pcs |
| Heating ring | Ø70*50 mm | 1pc |
| Heating rod | Ø15.8*100 mm | 2pcs |
| Proximity switch | Ø 25*25mm | 1pc |
| Proximity switch | Ø 12*12mm | 1pc |
| Thermoelectric coupling | K type/5M | 2pcs |
| Oil seal | / | 2pcs |
| Plugging rod | / | 1pc |
| Plugging bushing | / | 1pc |
| Copper gasket | / | 1pc |
| Injection nozzle | / | 1pc |
| User manual | / | 1 |
