Rotary injection machine for the production of TPR/PVC/PUR slippers, sandals and galoshes

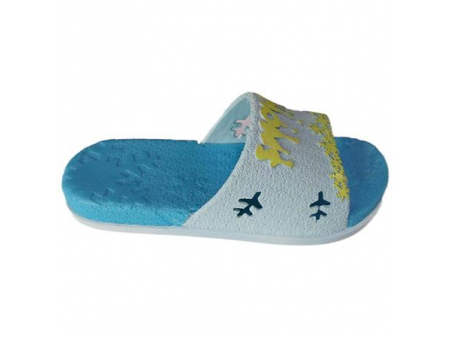

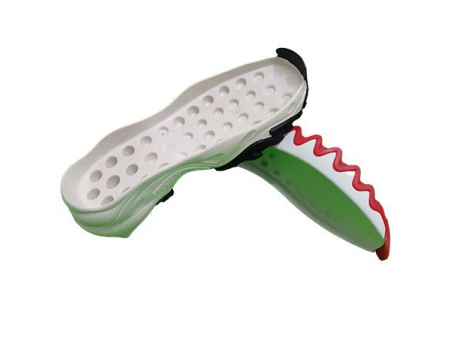

This sandal injection moulding machine produces single-colour and two-colour foam or non-foam soles, sandals and slippers. The footwear can be made out of raw materials like TPR, PVC and PUR. Apart from these advantages, this injection moulding machine is equipped with 24 sets of molds and can produce as many as 12 pairs of shoes at a time, which will definitely strengthen production rate to maximize profits.

Specifications
Item Unit EB224Q
Raw materials TPR, PVC, PUR (blowing)
Stations 24
Screw diameter mm 65 50
Maximum injection volume CC 660 390
Injection pressure MPa 70*2
Clamping force Tons 80*2
Yield Pairs/hour 100-180
Mould space mm 500*240*270
Heating power kW 16.5
Total power kW 49.5
Dimensions cm 750×750×220
Machine weight Tons 13.8
Oil consumption L 650*2
Optional

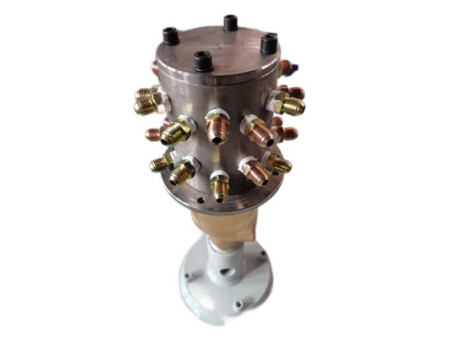

  • Water cooling system

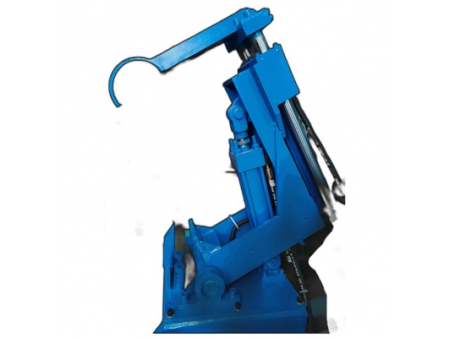

  • V type mould structure

  • Mould manipulator

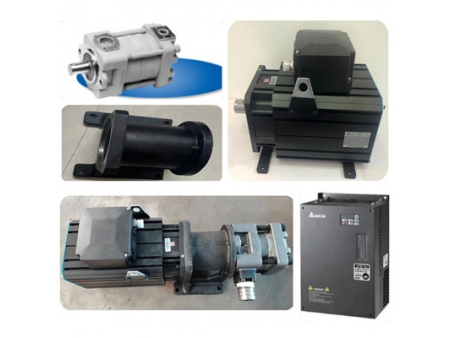

  • Energy-saving hydraulic servo control system

System flow chart
Features
  • Bonding is achieved by non-adhesive technologies that feature tight bonding performance;
  • Screw rod is made through special techniques that ensure durable and effective performance;

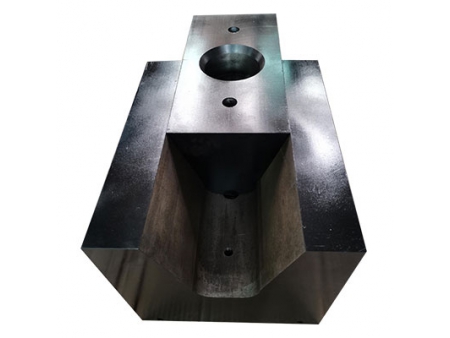

  • Block cylinder is made in an unique structure that blocks heat and leakage;
  • Pre-heating system is optional to reduce defective rate;
  • Efficient air blowing system is configured to improve the quality and reduce 30% weight of the goods to be made;

  • Standard industrial human-machine interface (HMI) and PLC control system are installed;

    • PLC control system

    • PLC

    • HMI interface

  • Servo system is also optional, which will save energy and reduce costs;

  • Following safety measures have been adopted to ensure stable and safe operation;

    • Safety sign

    • Safety door with photoelectric switch

    • Safety door with photoelectric switch

    • Emergency stop button

    • Rotary table anti-lifting switch

The purposes of these measures are to protect operators. The safety sign indicates potentially dangerous zones; photoelectric switch can stop the injection moulding machine if operators accidentally extend their hands into the working machine; emergency stop button allows operators to close the injection moulding machine when something unusual happens; turn table anti-lift switch sends electric signals to shut down the injection moulding machine to prevent the turn table from moving away from the wheel.

In addition to the above-mentioned measures, this injection press is equipped with other devices. Safety door is installed to allow operators to shut down the injection machine when malfunctions happen; safety net is set up to prevent misoperation.

Auxiliary Equipment
  • Cooling tower is installed to bring down the temperature of hydraulic oil and raw materials;

  • Crusher is used to recycle used materials;

  • Vertical mixer blends materials with different colours and turn them into the same colour;

  • Air compressor will be connected to the injection moulding machine to supply air;

  • Drying system eliminates water in air so as to avoid bubbles in finished products and make better foam soles;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø90*80 mm 1pc
Heating ring Ø65*50 mm 1pc
Heating ring Ø120*80 mm 2pcs
Heating ring Ø70*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
