Request a Quote
Rotary injection machine for making TPR/PVC/PUR slippers, sandals and galoshes in one, two or three colours
Specifications
Item Unit HB320Q HB324Q
Raw materials TPR, PVC, PUR (blowing)
Stations 20 24
Screw diameter mm 70 50*2
Maximum injection volume CC 769 390*2
Injection pressure MPa 70*3
Clamping force Tons 80*2
Yield Pairs/hour 80-150 100-200
Mould space mm 500*240*240
Heating power kW 9 6.5*2
Total power kW 68
Dimensions cm 710×530×220 780×600×220
Machine weight Tons 12.1 13.3
Oil consumption L 600*2
Optional
  • V type mould structure

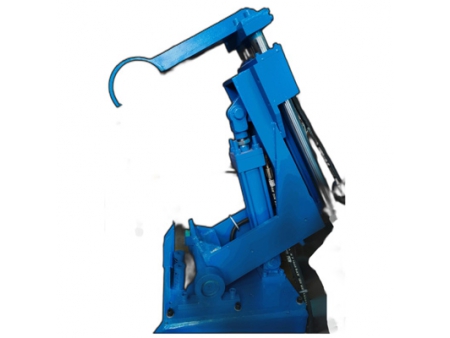

  • Mould manipulator

  • Energy-saving hydraulic servo control system

System flow chart

HB320Q Three Colour Sandal Injection Moulding Machine

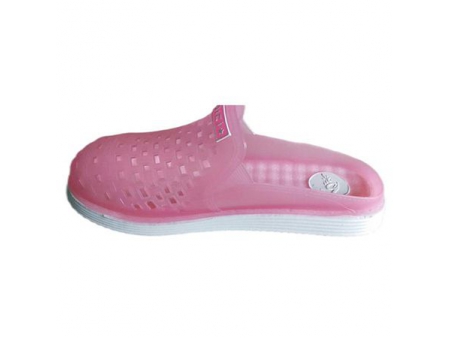

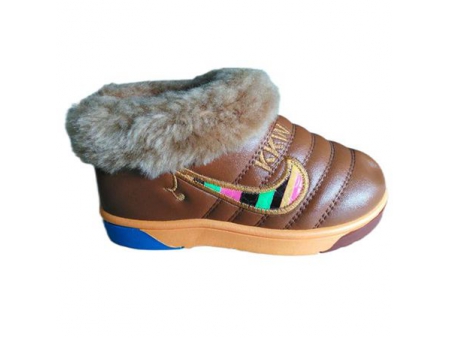

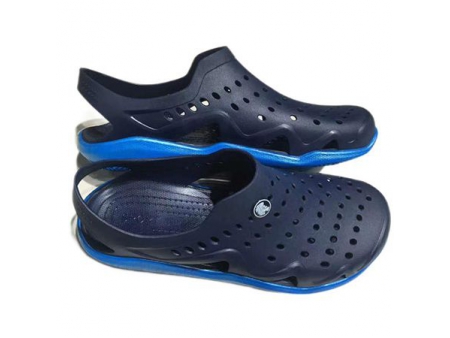

SONC has been manufacturing injection moulding machines for years. Our portfolio includes machine for soles or sandals. Take this three colour sandal injection moulding machine for example. It is used for producing single-colour, two-colour and three-colour foam or non-foam soles, sandals and slippers. The applicable materials are TPR, PVC and PUR. This shoe making machine is equipped with 12 sets of molds, meaning that it can produce 12 pairs of shoe soles at a time.

Features
  • Bonding is achieved by non-adhesive technologies that feature tight bonding performance;
  • Efficient air blowing system is configured to improve the quality and reduce the weight of the goods to be made;

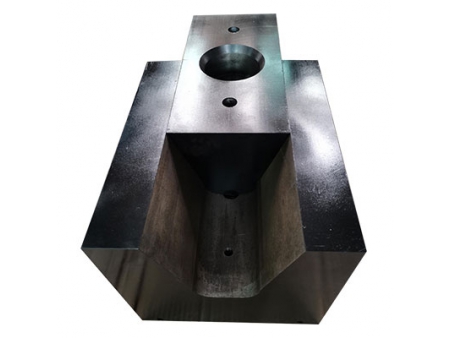

  • Block cylinder is made with an unique structure that is highly resistant to heat and leakage;
  • Screw rods are made through special techniques, ensuring exclusive durability;
  • Pre-heating system is optional to reduce defective rate;

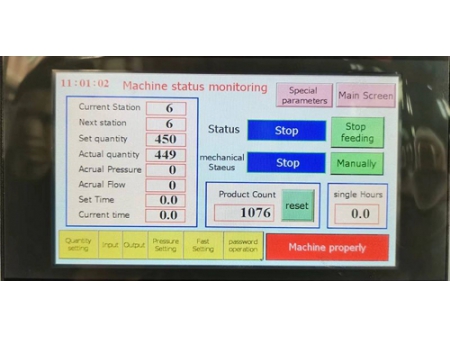

  • The PLC control system with industrial human-machine interface (HMI) is easy to use;

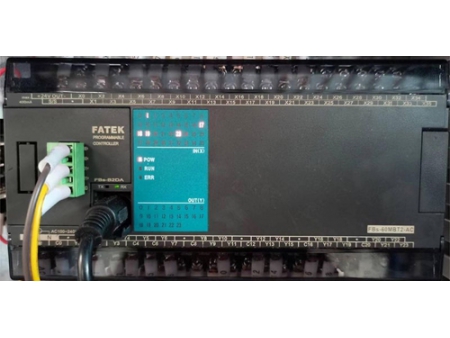

    • PLC control system

    • PLC

    • HMI interface

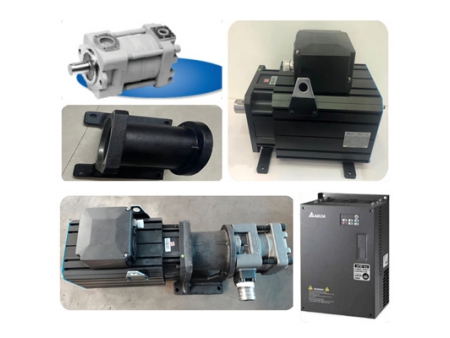

  • Servo motor and automatic mould manipulator are optional to save energy and reduce labour intensity;

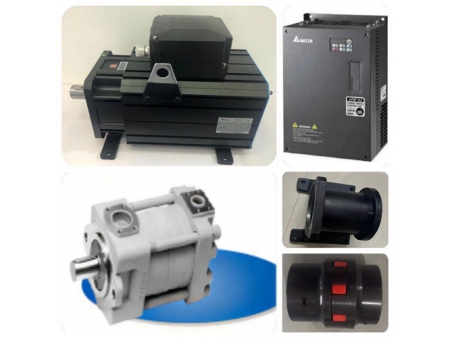

    • Servo system

  • These safety measures have been adopted:

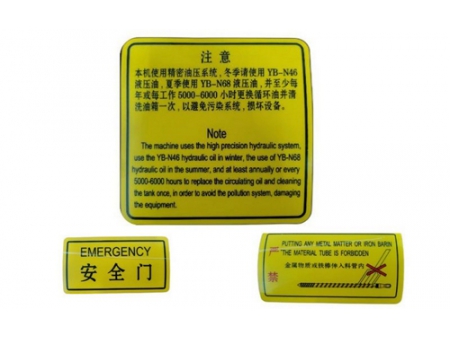

    • Safety sign

    • Safety door with photoelectric switch

    • Safety door with photoelectric switch

    • Emergency stop button

    • Rotary table anti-lifting switch

The purposes of these measures are to protect operators.

  • Safety door is installed to allow operators to shut down the injection machine when malfunctions happen.
  • Photoelectric switch can stop the injection moulding machine if operators accidentally extend their hands into the working machine.
  • Turn table anti-lift switch sends electric signals to shut down the injection moulding machine to prevent the turn table from moving away from the wheel.
  • Emergency stop button allows operators to close the injection moulding machine when something unusual happens.
  • Safety net is set up to prevent misoperation.
  • The safety sign indicates potentially dangerous zones.
Auxiliary Equipment
  • Cooling tower is installed to bring down the temperature of hydraulic oil and raw materials;

  • Crusher is used to recycle used materials;

  • Vertical mixer blends materials with different colours and turn them into the same colour;

  • Air compressor will be connected to the injection moulding machine to supply air;

  • Drying system eliminates water in air so as to avoid bubbles in finished products and make better foam soles;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø120*80 mm 1pcs
Heating ring Ø90*80 mm 1pcs
Heating ring Ø65*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
