Rod Conveyor Belt

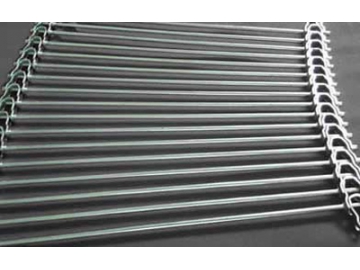

The ladder conveyor belt (also known as cross bar conveyor belt) is a kind of positive drive conveyor belt. Its structure is simple while it is flexible and practical. This conveyor belt can realize highly efficient operation for your production and conveying process. You can easily clean the conveyor belt thoroughly. This can reduce the maintenance cost. The ladder conveyor belt can be made of carbon steel, 304, 316 stainless steel or some other materials required by our customers so that it can work normally under the temperature from -100~300℃.

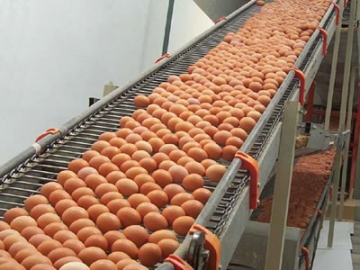

The ladder conveyor belt is usually used for cooling conveying of baking and candy industry, conveying of chemical and engineering industry. It also works as cross bar conveyor belt of packing machine.
The ideal max running speed is 20 m/min.
- YiYi can produce ladder conveyor belt which realize snake forward.

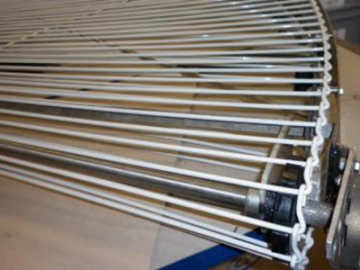

- Curve belt: angle 90~180 degrees

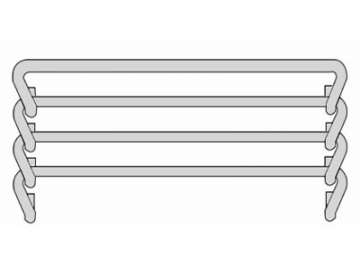

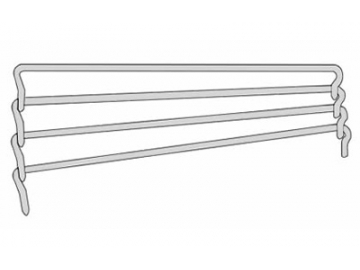

- The conveyor belt can be used with chain or U-shaped links.
| Pitch（mm） | 1/2~4 |
| Width(mm) | 20~1500mm |
| Rod Diameter(mm) | 2~8mm |
| Drive mode | Positive Drive（straight running and radial） |
- The ladder conveyor belt adopts high strength cross bar which has resistance to permanent deformation, thus reducing failure.
- This conveyor belt adopts Positive Drive in order to ensure that there is no tracking issues.
- The smooth edge ensures easy moving at the curve.
- The conveyor belts offer good ventilation;
- The structure is simple. So it is easy to be cleaned, assembled and disassembled.
- The cost is low.
