Edge-Driven Conveyor Belt
Request a Quote

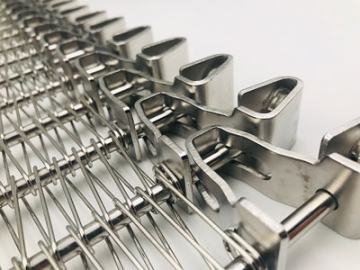

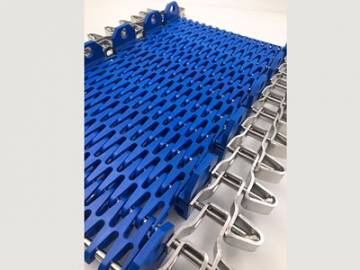

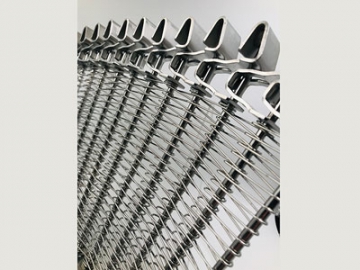

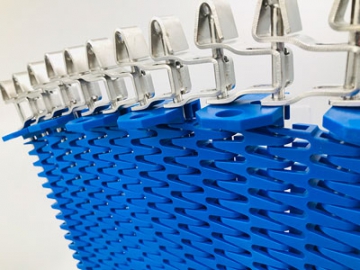

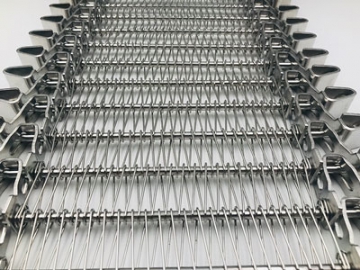

Comprised of plastic belting, drives, rods and sprockets, the edge-driven conveyor belt comes with modular design, making it easily configured in any way to meet different conveying needs. The plastic belting features smooth belt surface and high durability. Edge-driven design allows for stable running. Easy maintenance and repair can be achieved because of the modular design. The belting can be also made using wire mesh with/ sidewalls.
Application
- Snack and bakery belting
- Meat, poultry and seafood belt
- Fruit and vegetable belting
- Belt for beverage and brewery
Parameters
| Material | plastic, stainless steel |
| Rod pitch (mm) | 31.75, 34 |
| Rod diameter (mm) | 6 |
| Spiral pitch(mm) | 12 |
| Wire diameter (mm) | 1.4, 1.5, 1.6 |
| Belt width (mm) | 310mm-1000mm |
| Belt edge | welded |
| Belt length | customized |
| Sprocket | customized |
Features
- Durable plastic and stainless steel are available.
- Smooth plastic belting meets high hygienic requirement to make it ideally used in the food processing industry.
- Sprocket drive on the side minimizes friction and ensures stable running.
- Straight running, 180-degree curve and up to full 360-degree spirals are optional to meet various applications.
- Features simplified control, high carrying capacity, and reduced cleaning costs.
