Request a Quote

PP blow film extrusion machines are used to blow form various plastic film bags. Our produced blow film machines adopt many high quality accessories such as Italian gearboxes and Taiwanese die heads in order guarantee that the products produced by the machines are uniformly thick, evenly embossed and neatly winded. They are suitable for the blowing of polypropylene (PP) plastic cylindrical film and their products are widely used for the packaging of civilian and industrial goods such as food, clothing, textiles and daily necessities.

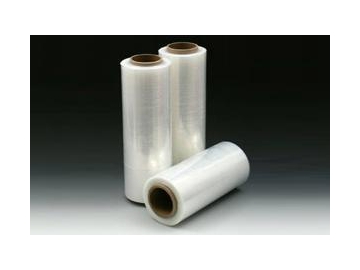

Finished products
Technical parameters
Film Thickness 0.025mm-0.12mm
Screw L/D 32mm
Screw Two-section mixed screw
Air Blower 1/6HP×4
Water Ring 5PC
Torque Motor Power 2HP
Roller Speed 5.2-52(m/min)
Line Speed 7-70m/min
Advantages of blow film extrusion machine

Its core components adopt special steel and are nitriding treated so that they are high temperature resistant and wear resistant and can run continuously at high speed for a long time.


Die head produced in Taiwan is adopted so that the finished products have uniform thickness and smooth surface.


Blow film extrusion machines adopt hot water embossing, and single-group or double-group embossing can be applied according to different requirements.


The winding device can precisely adjust the winding speed and tension so that the products are smoothly winded.


Its gearbox adopts Italian hardened gears which are made of low carbon alloy steel. Therefore, bow film extrusion machine shows good bearing capacity and wear resistant performance.


The total power of electric box can reach 25 kW. Besides, operation buttons are visually displayed, which is convenient and intelligent.


Optional models
Model SYS-PP55 SYS-PP65
Film Width 150mm-550mm 200mm-700mm
Extruding Capacity 50KG/HR 65KG/HR
Screw Diameter 55mm 65mm
Total Power 20KW 22KW
Torque Motor Power 25HP 30HP
Die Head Type 200# 300#
Die Head Size 250mm 300mm
Water Ring Size 150mm-550mm 250mm-750mm
Roller Width 660mm 915mm
Machine Dimension L×W×H 4500mm×2000mm×4300mm 5200mm×2100mm×4500mm
Optional equipment

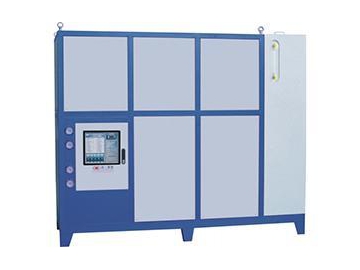

  • Water cooling unit
  • Thermostatic water tank

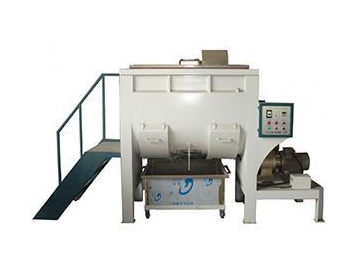

  • Automatic drying mixer
