ETA industrial video borescopes are specially designed to examine the interior of complex components such as engines and gearboxes. The probe wire is made of multi-layer tungsten filament, ensuring it has an excellent performance and easily adapts to harsh environments. Using this borescope, users can quickly locate any malfunctions and complete repairs without having to incur high maintenance costs. ETA borescopes are also used in other applications.

Features
  • HD mega-pixel automotive borescope, with camera and video functions.

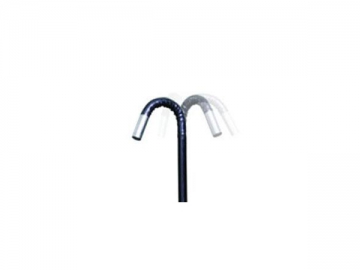

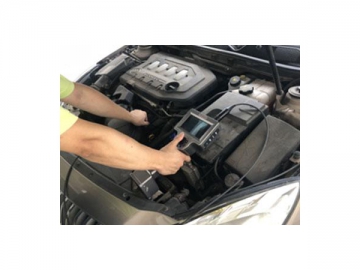

  • The probe features a 360° articulation angle, so that with the bend and stop, users can easily test the winding pipes in automotive valves, engines, and exhaust pipes.
  • Multilayer tungsten metal tube; wear-resistant, waterproof and oil-proof, suitable for harsher service environments.

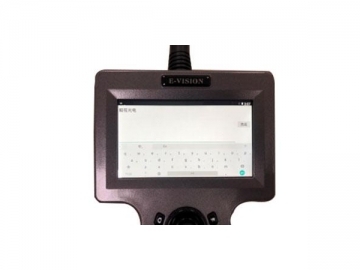

  • 128G memory card; photo and video storage in Jpeg and MP4 format; touch screen with full keyboard input; new photos and folder renaming functions.
  • HD HDMI image output; Wifi/Bluetooth wireless image sharing for consultation of fault situations.
ETA SPECIFICATION
Probe Pixel: 1 Mega Pixel ,480,000 Pixel
Diameter: 6.0mm / 4.3mm / 3.9mm/3.0mm
FOV: 90°
View Direction direct View/ direct view & Side view Dual Camera
Probe Length 1~5 meters with tungsten mesh
Articulation 360°with Mechanical control
System Displayer 5 Inch Touch Screen LCD (1920*1080)
Memory TF Card Support 8G~128G
Output Interface USB2.0/HDMI out/ Earphone out
Power 2x26650 Li-battery/110~220V AC
Wireless WiFi/Bluetooth for Android
Size 330*148*150 (L*W*H)
Weight 1.2Kg (Include Battery)
Waterproof Probe: IP67
Working Temperature -10~50°
Software Menu Touch Screen control
Image process Image Zoom In & Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename
Lightness 5 level LED/ Fiber light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust
Storage Image/Video/Audio record
Language English/Chinese/French/Korean/German/Russian/Japanese/ etc.
