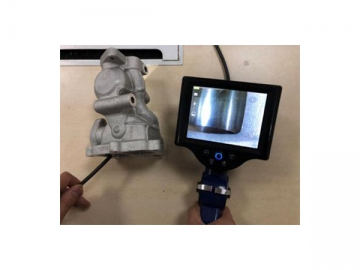

ECP borescopes for casting inspection are designed for inspection and maintenance of casting parts. The lens is either a hard tube or hose that is used to flexibly check casting part interiors. This borescope also assists quality control departments with product QC and QA.

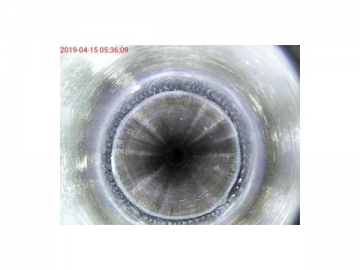

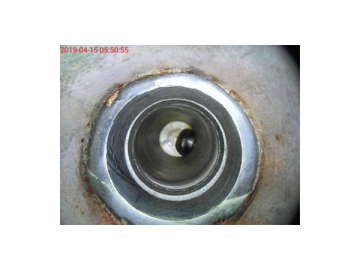

The borescope can detect, analyze and take videos of the casting parts, cavities, welds and threads, then display them through an HD HDMI video output.

ECP SPECIFICATION
Probe Pixel 1 Mega Pixel,480,000 Pixel
Diameter 6.0mm / 3.9mm/3.0mm/2.2mm ; Borescopes or flexible probe
FOV 90°
View Direction Farward View/ Farward view+Side view Dual Camera
Probe Length 1 meters with tungsten mesh; or steel borescope
Articulation 360°with Mechanical control ; or no Articulation
InputSupport 2 ways probe input; Support picture in picture
System Displayer 10.1 Inch Touch Screen LCD (1920*1080); with touch screen
Memory TF Card Support 8G~128G
Output Interface USB2.0/HDMI out/ Earphone out; support 2 monitors
Power 110~220V AC
Wireless WiFi/Bluetooth for Android
Size 330*148*150 (L*W*H)
Weight 1.2Kg
Waterproof Probe: IP67
Working Temperature -30~50°
