SUYU is engaged in manufacturing and supplying a wide range of rail sleeper screw. Designed with high precision and processed under advanced technologies, these rail sleeper screws are manufactured using high grade raw materials, satisfying all the quality standards. With reliability, robustness and effective performance, these products can be used in railway engineering.

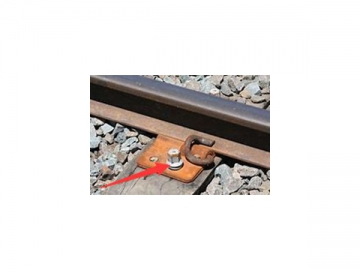

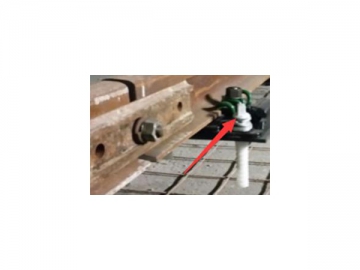

Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.

The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.

SUYU can supply a range of rail sleeper screw spikes manufactured to international standards according to BS, ASTM and DIN, among others. SUYU has extensive experience in the rail industry and a high level of expertise in this specialized field. SUYU can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.

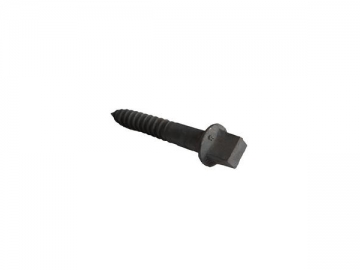

  1. UIC864-1 Ss series screw spike
  2. ASTM A66-87 screw spike
  3. Big disk screw spike
  4. NF F50-006 3V sleeper screw
  5. High tension screw spike
  6. Coach screw used in South Africa
  7. DHS35 sleeper screw
  1. NF F50-014 rail screw
  2. Double ends screw spike
  3. Timber drive spike
  4. Slotting head screw spike

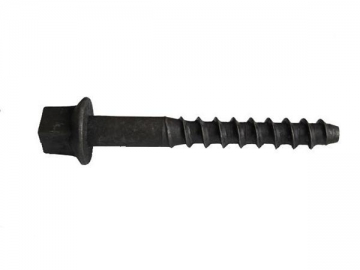

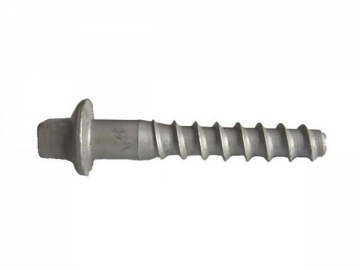

Ss series rail sleeper screw is according to the standard UIC864-1
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Tensile Strength Yield Strength Elongation
800Mpa 640Mpa 12%
Type Dimension (mm) Weight (Kg)
Ss5-150 M24×150 0.545
Ss8-140 M24×140 0.528
Ss8-150 M24×150 0.548
Ss8-160 M24×160 0.568
Ss23-160 M24×160 0.645
Ss25-165 M24×165 0.625
Ss35-161 M24×160 0.657

We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


Rail sleeper screw spikes with big disk are mostly used in South America and Africa. A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.

Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

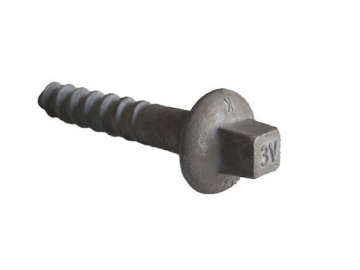

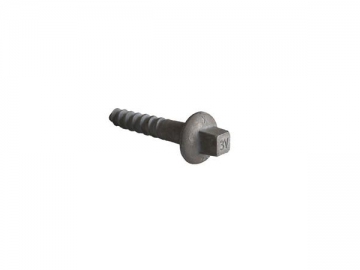

Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Type Dimension(mm) Weight (Kg)
V20-135 M20×135 0.438
V23-115 M23×115 0.48
V23-135 M23×135 0.55
V23-155 M23×155 0.62
V23-215 M23×215 0.78
V26-115 M26×115 0.55

Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic keg

High Tension Screw Spike
Tensile Strength Yield Strength Elongation Reduction of Area Hardness
120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32

Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.

Material: 45#, heat treatment

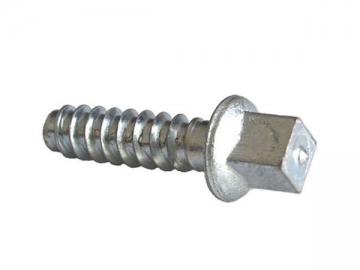

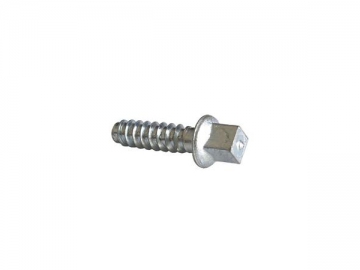

Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6
MOQ: 50,000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

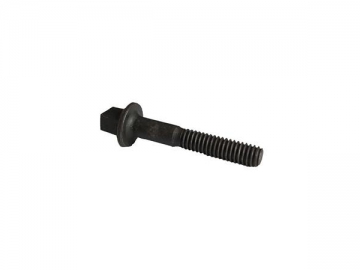

Rail sleeper screw spike with round thread, according to the standard NF-F 50014
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

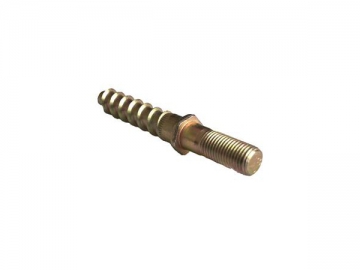

Rail sleeper screw spike with two ends, fixes the rail together with the Nabla clip system. This spike is very popular in Africa. We use special material TD16 to produce the sleeper screw to meet with the bending test, bending 30 degree and straightening it, without crack.
Size: 23×174
Grade: 5.6
Material: TD16
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


Timber drive spikes can reduce installation and maintenance costs. The spikes are used for timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The washer head is single forged and the excellent holding power of threads provides tight installation. The spikes are easily installed, driven with a maul or pneumatic spike driver. They cannot be overdriven and are easily removed for reuse with a hand or power tool. The drive spikes are available for a wide variety of installations and maintenance of way, and meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Grade: 5.6
Material: 35#
Surface Treatment: Zinc or according to clients' requirement
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement

Tensile Strength Yield Strength Elongation 2"
414Mpa 207Mpa >18%

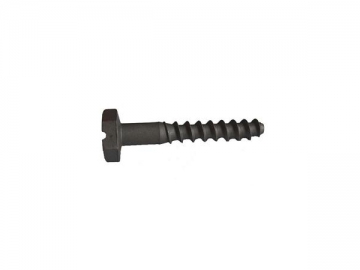

Screw spike with slotting head, as per UIC864-1
Size: 24×131 and 24×150
Grade: 4.6
Material: Q235
Surface Treatment: Plain, Black painting or according to clients' requirement
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets
