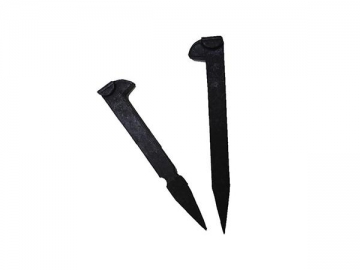

A rail spike is a large nail with an offset head that is used to secure rails and base plates to the sleepers in track. The rail spikes are roughly chisel-shaped with a flat-edged point. The spike is driven into the sleeper with the edge against the grain, which gives greater resistance to loosening. The main function of the rail spike is to keep the rail in gauge. Rail dog spikes provide a strong, simple and inexpensive solution to securing rail track.

The method of manufacture ensures that the rail spike head and shank remain one solid piece of metal with no joins or welds.

Applications
The rail spike ranges in use in many countries from coal and gold mines to sugar plantations, peat works, garden festivals and leisure parks, as well as in some heavy rail applications.

Our rail spike or dog spikes are manufactured in accordance with a number of international standards such as GB, AREMA or ASTM, BS, UIC material, in either carbon or stainless steel.

  1. AREMA rail spike
  2. High tension track spike
  3. Boat spike
  4. BS standard rail spike
  5. AS standard track spike
  6. Lock spike

Dog spikes are available in varying sizes to suit most applications. SUYU can supply a range of popular rail spikes, at economical prices, including the typical examples shown below:

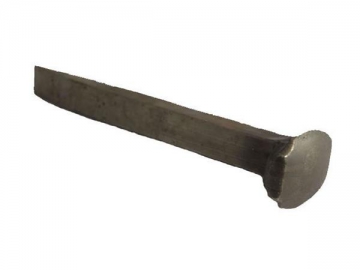

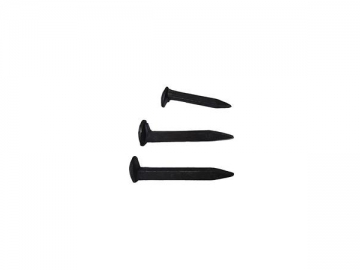

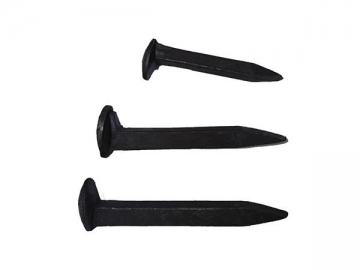

This rail spike is manufactured according to ARMEA specifications.
Size: 3/4", 1/2", 5/8"
Length: 3", 3-1/2", 4-1/2", 5", 5-1/2", 6"
Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement

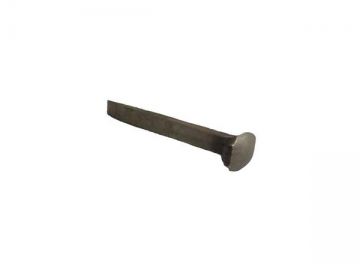

This is a track spike with high tensile grade of the AREMA specification. The material is the medium carbon steel; the chemical composition and mechanical properties should be as follows:
Material: 45#
Surface: Plain
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement

C Mn Si P S
0.17 - 0.25% 0.9 - 1.35% 0.35 Max 0.04% Max 0.05 Max

Tensile Strength Yield Point Elongation (in 2" length sample)
70,000 psi Min 46,000 psi Min 25% Min

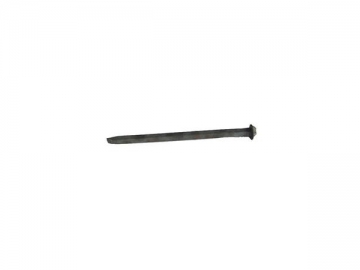

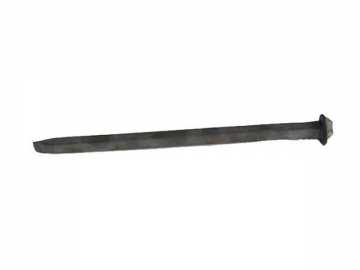

Boat spikes are also available in our factory
Size: 3/8", 1/2"
Length: 6", 8", 10", 12"
Material: Q235
Surface: HDG, black painting, plain (oiled)
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement

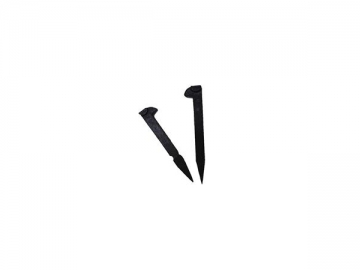

These rail spikes are used for BS80LBS, 75LBS and 90LBS rails. The size ranges from 3-1/2" x 3/8", 2-3/4" x 1/2", 3-1/2" x 1/2", and 4-1/2" x 9/16" dog-eared spoonhead, and sheared patterns.
In addition to our normal products, their shape and dimension can be produced and designed according to the specification of our customers. Their size can be 12mm, 13mm, and 16mm, and the length can be adjusted to client requirement.

Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

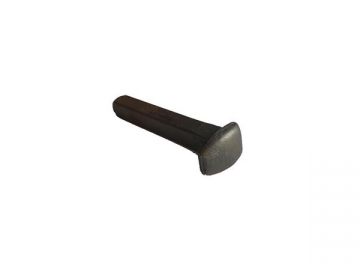

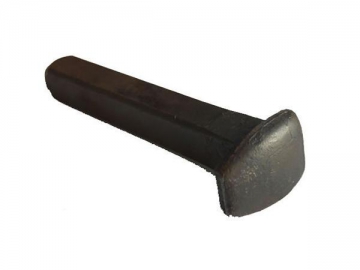

Dog spike with square shank as per AS1085.8 and round shank for the Australian market
Size: 16mm, 19mm and 22mm
Length: 150mm, 170mm
Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

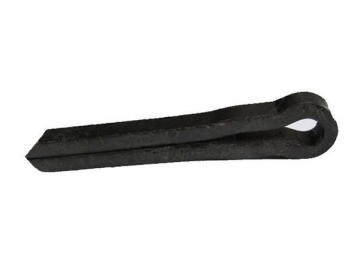

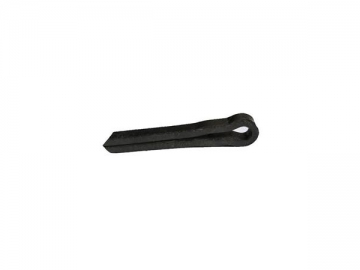

We can also produce the lock spike in many sizes according to our customers' requirement. The lock spike is used to fix elastic fastening base plates on a wooden sleeper. We offer lock spikes made with top quality, making them sturdy and efficient in functioning. We manufacture our lock spikes with superior quality raw substances which ensure their durability for a long run and we are considered the most trusted exporter.


Sticking to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail spike products are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, rail anchor, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
