The rail clip is one of the components which ensure that rails will be fixed to ground. Rail clips undertake rail movements synchronously thanks to the synthetic elastomer vulcanized to clip permanently in the portion to be contacted with rail.

  1. Rail clamp
  2. Crane rail clip
  3. KPO rail clip

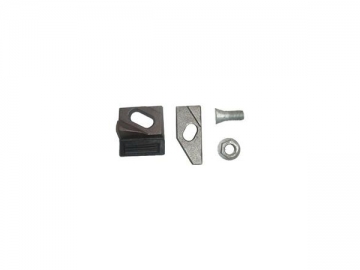

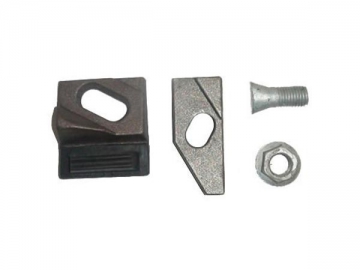

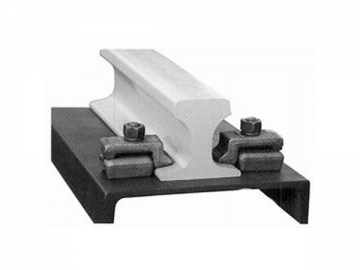

The rail clip is a boltable, adjustable, self-blocking clip with high clip strength. The adjustability is secured by means of the square taper washer. There are types for M16, M20, and M24 fastening material. The rail clip is especially used with crane tracks on a steel girder or on a concrete foundation with a steel sole plate. The height of the railway clip is variable, so there is a suitable clip for virtually every rail type, including Nibless/without cone variety to suit rails from 10kg/m up to 56Kg/m. We manufactured a range of rail clips for steel sleepers presently used in East and West Africa for Kenya, Uganda, Ghana, Congo, Senegal, Ivory Coast, and Togo, together with clip bolts and spring washers to suit.

We have extensive experience in the rail industry and a high level of expertise in this specialized field. Our rail clip products are designed in such a way to allow fine adjustment for alignment, while at the same time, providing a self locking effect against the force of the crane. The rail clips can be fixed by being bolted or welded to the structure.

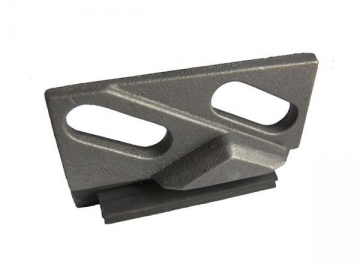

The Gantrail rail clip is an adjustable, self-blocking clip with a rubber nose and with a modest but permanent pre-stress strength. This rail clip is available in various types and models. By varying the height of the rubber nose there is a suitable clip for every rail type.

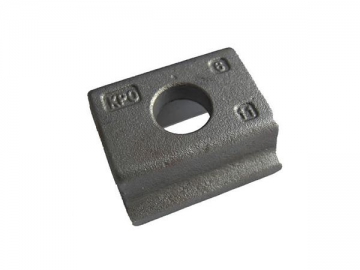

The KPO clip is a boltable clip with high clip strength. This rail clip is applied in combination with ribbed tie plates and T-headed bolts.


Adhering to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail clips are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
