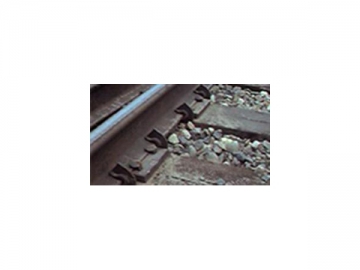

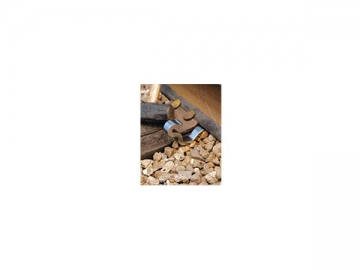

SUYU manufactures different types of rail anchor products. The anchors are used where the fastenings system requires an extra creep resisting arrangement. There are various shapes of the anchor which is made of rolled bars of various sections. When driven in the rail, the railway anchor grips the rail firmly and when set against sleepers, resists longitudinal movement of the rails caused by passing trains.

The quality parameters of our rail anchor are as per with the International Standards and all are readily available in a considerable quantity at all times.

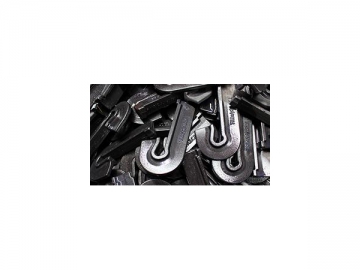

  1. Drive on rail anchor

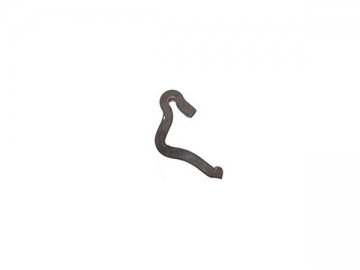

  2. Spring type rail anchor

We produce different types of rail anchors to compromise different rail sections including 50kg ,85LB, 90/91LB, 115RE, TR-45,75LB BSS , 75LBS ASCE, 80LB CARNEGIE, 80LB BSA etc.

Rail anchor type Hardness Material
50KG AS1085.10-2002 HRC42-47 60Si2MnA
85LB AS1085.10-2002 HRC42-47 60Si2MnA
90/91LB AS1085.10-2002 HRC42-47 60Si2MnA
75LB BSS HRC42-47 60Si2MnA
75LBS ASCE HB330-380 65Mn
80LBS CARNEGIE HRC42-47 60Si2MnA
80LB BSA HRC42-47 60Si2MnA
TR-45 HB330-400 65Mn
115RE HRC42-47 60Si2MnA


Material: Spring steel 65Mn
Hardness: HB330-380
Surface: Plain oiled



Material: Spring steel 60Si2MnA
Hardness: HRC42-47
Surface: Plain oiled

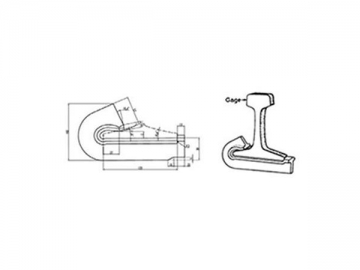

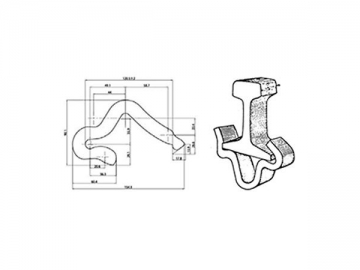

Drawings

Adhering to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail anchor and other railway fasteners are of high quality and up to customers' requirements.

As a leading manufacturer of rail anchor based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
