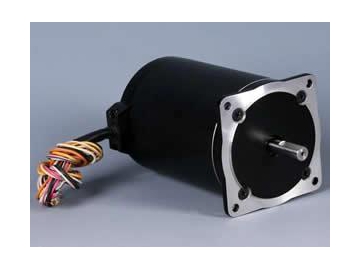

0.72, 1.2, 1.5, 1.8 Degree Size 130mm 2-Phase Hybrid Stepper Motor

0.72, 1.2, 1.5, 1.8 Degree Size 130mm 2-Phase Hybrid Stepper Motor
Request a Quote

Features
High torque, high precision, smooth operation

Application
This 2-phase hybrid stepper motor is used in engraving machine and other equipment in the advertising industry.

Item Specifications
Step Angle 0.72º /1.2º /1.8º
Step Angle Accuracy ± 5% (full step, no load)
Resistance Accuracy ± 10%
Inductance Accuracy ± 20%
Temperature Rise 80℃ Max.(rated current, 2 phase on)
Ambient Temperature -20℃~ 50℃
Insulation Resistance 100MΩ Min., 500V DC
Dielectric Strength 1500V AC for one minute
Radial Play 0.02 Max. (450g-load)
Axial Play 0.08 Max. (450g-load)
Max. Radial Force 220N (20mm from the flange)
Max. Axial Force 60N
Rotation CW (See from the front flange)
Model No. No. of Phase Step Angle Rated Voltage Current per Phase No Load Run Frequency Holding Torque Rotor Inertia Length Shaft Dimension Φ D Flange Dimension D1 KEY A Wiring Diagram
Single Shaft
degree V A KHz Kg·cm kg·cm2 mm mm mm

FL130BYG2501 2 1.8 120-310 6.0 ≥20 27 33 165 19 –0.013 -0.028 100 0 -0.023 5×25 1
FL130BYG2502 2 1.8 120-310 7.0 ≥15 40 48 230 19 –0.013 -0.028 100 0 -0.023 5×25 1
FL130BYG2503 2 1.8 120-310 7.0 ≥12 50 60 270
100 0 -0.023
1
FL130BYG3501 3 1.2 80-325 6.0 ≥15 25 33 165 19 –0.013 -0.028 100 0 -0.023 5×25
FL130BYG3502 3 1.2 80-325 6.0 ≥15 37 48 230 19 –0.013 -0.028 100 0 -0.023 5×25
FL130BYG3503 3 1.2 80-325 6.0 ≥15 50 60 270
100 0 -0.023

FL130BYG5501 5 0.72 120-310 5.0 ≥20 20 33 165 19 –0.013 -0.028 100 0 -0.023 5×25 2
FL130BYG5502 5 0.72 120-310 5.0 ≥20 30 48 230 19 –0.013 -0.028 100 0 -0.023 5×25 2
FL130BYG5503 5 0.72 120-310 5.0 ≥15 40 60 270
100 0 -0.023
2
