12613 BSP Male 60° Cone Seat Fittings
Request a Quote
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSP male 60° cone seat fittings
- Carbon steel BSP male 60° cone seat fittings

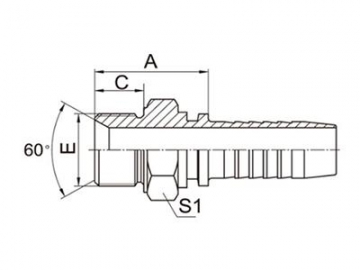

| Part No. | Thread E | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | S1 | |||
| 12613-12-12 | G3/4''×14 | 20 | 12 | 39.5 | 18.5 | 30 | |
| 12613-16-16 | G1''×11 | 25 | 16 | 44.9 | 20.5 | 38 | |
| 12613-20-20 | G1.1/4''×11 | 32 | 20 | 49.3 | 20.5 | 46 | |
| 12613-24-24 | G1.1/2''×11 | 40 | 24 | 53.1 | 23 | 50 | |
| 12613-32-32 | G2''×11 | 50 | 32 | 59 | 25.5 | 65 | |
