Economy Mini Ball Valve
Request a Quote
- Working pressure: 450 PSI
- Temperature Range: -4 ° F to 250 °F (-20 °C to 120 °C)
- Connection: male x male or male x female
- Aluminum cast handle and with 20mm hex body

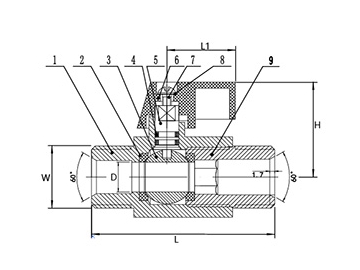

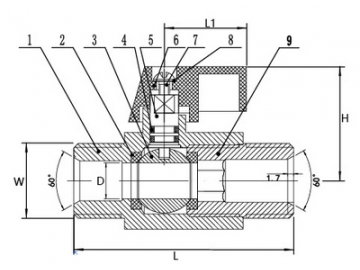

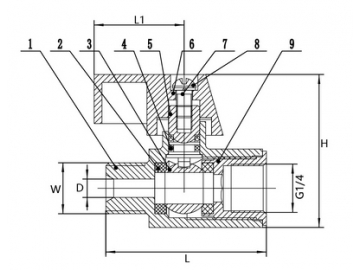

Inch/Metric(mm)
| Item # | Size | W | D | L | L1 | H |
| 370-1813 | 1/4" | 1/4" BSPP, MxF | 0.31/8 | 1.57/40 | 0.91/23 | 1.14/29 |
| QM3351-0898 | 1/2" | 1/2"BSPP,MxF | 0.39/10 | 2.32/59 | 0.91/23 | 1.26/31.9 |
| QM335-2834 | 1/2" | 1/2"BSPP,MxM | 0.39/10 | 2.42/61.5 | 0.91/23 | 1.26/31.9 |
| Part # | Part Name | Q'ty | Material |
| 1 | Body | 1 | Brass |
| 2 | Seat | 2 | PTFE |
| 3 | Ball | 1 | Brass |
| 4 | O-Ring | 2 | NBR |
| 5 | Stem | 1 | Brass |
| 6 | Handle | 1 | Aluminum cast |
| 7 | Screw | 1 | S.S |
| 8 | Spring Washer | 1 | 65Mn |
| 9 | Cap | 1 | Brass |
