Air Compressor Brass Mini Ball Valve
Request a Quote
- Max. working pressure: 300 PSI (20 bar for thread end) 250 PSI (17 bar for Hose Barb)
- Temperature Range: -4 °F to 250 °F (-20 °C to 120 °C)
- Connection: Thread or hose barb
- Size available: From 1/8" to 1/2" thread or tube
- Chrome plated steel handle: 180° turn for more easy and quick opening and closing
- Five different colors for easy identification in manifold applications
Female NPT x Hose Barb
Inch/Metric(mm)
| Item # | End Size | L | H | Images |
| | ||||
| ACBV-12F1/8H | 1/8F x 1/8"ID | 40(1.57) | 22(0.87) | |
| ACBV-12F3/16H | 1/8F x 3/16"ID | 44(1.73) | 22(0.87) | |
| ACBV-12F1/4H | 1/8F x 1/4"ID | 48(1.89) | 22(0.87) | |
| ACBV-12F3/8H | 1/8F x 3/8"ID | 48(1.89) | 22(0.87) | |
| ACBV-25F1/8H | 1/4F x 1/8"ID | 42(1.65) | 22(0.87) | |
| ACBV-25F3/16H | 1/4F x 3/16"ID | 46(1.81) | 22(0.87) | |
| ACBV-25F1/4H | 1/4F x 1/4"ID | 50(1.97) | 22(0.87) | |
| ACBV-25F3/8H | 1/4F x 3/8"ID | 50(1.97) | 22(0.87) | |
| ACBV-25F1/2H | 1/4F x 1/2"ID | 50(1.97) | 22(0.87) | |
| ACBV-33F1/8H | 3/8F x 1/8"ID | 42(1.65) | 24(0.94) | |
| ACBV-33F3/16H | 3/8F x 3/16"ID | 46(1.81) | 24(0.94) | |
| ACBV-33F1/4H | 3/8F x 1/4"ID | 50(1.97) | 24(0.94) | |
| ACBV-33F3/8H | 3/8F x 3/8"ID | 50(1.97) | 24(0.94) | |
| ACBV-33F1/2H | 3/8F x 1/2"ID | 50(1.97) | 24(0.94) | |
| ACBV-50F1/4H | 1/2F x 1/4"ID | 59(2.32) | 28(1.10) | |
| ACBV-50F3/8H | 1/2F x 3/8"ID | 59(2.32) | 28(1.10) | |
| ACBV-50F1/2H | 1/2F x 1/2"ID | 59(2.32) | 28(1.10) |
Male NPT x Hose Barb
| ACBV-12M1/8H | 1/8M x 1/8"ID | 40(1.57) | 24(0.94) | |
| ACBV-12M3/16H | 1/8M x 3/16"ID | 44(1.73) | 24(0.94) | |
| ACBV-12M1/4H | 1/8M x 1/4"ID | 48(1.89) | 24(0.94) | |
| ACBV-12M3/8H | 1/8M x 3/8"ID | 48(1.89) | 24(0.94) | |
| ACBV-25M1/8H | 1/4M x 1/8"ID | 42(1.65) | 24(0.94) | |
| ACBV-25M3/16H | 1/4M x 3/16"ID | 46(1.81) | 24(0.94) | |
| ACBV-25M1/4H | 1/4M x 1/4"ID | 50(1.97) | 24(0.94) | |
| ACBV-25M3/8H | 1/4M x 3/8"ID | 50(1.97) | 24(0.94) | |
| ACBV-25M1/2H | 1/4M x 1/2"ID | 50(1.97) | 24(0.94) | |
| ACBV-33M1/8H | 3/8M x 1/8"ID | 42(1.65) | 24(0.94) | |
| ACBV-33M3/16H | 3/8M x 3/16"ID | 46(1.81) | 24(0.94) | |
| ACBV-33M1/4H | 3/8M x 1/4"ID | 50(1.97) | 24(0.94) | |
| ACBV-33M3/8H | 3/8M x 3/8"ID | 50(1.97) | 24(0.94) | |
| ACBV-33M1/2H | 3/8M x 1/2"ID | 50(1.97) | 24(0.94) | |
| ACBV-50M1/4H | 1/2M x 1/4"ID | 59(2.32) | 24(0.94) | |
| ACBV-50M3/8H | 1/2M x 3/8"ID | 59(2.32) | 24(0.94) | |
| ACBV-50M1/2H | 1/2M x 1/2"ID | 59(2.32) | 24(0.94) |

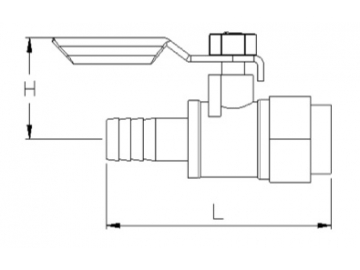

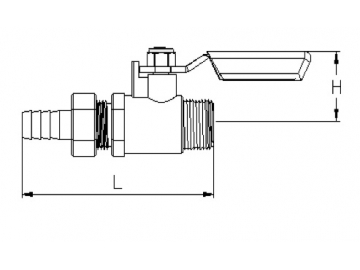

Male NPT x Hose Barb
| ACBV-12M1/8UH | 1/8M x 1/8"ID | 55(2.16) | 22(0.87) | |
| ACBV-12M3/16UH | 1/8M x 3/16"ID | 63(2.48) | 22(0.87) | |
| ACBV-12M1/4UH | 1/8M x 1/4"ID | 68(2.68) | 22(0.87) | |
| ACBV-12M3/8UH | 1/8M x 3/8"ID | 68(2.68) | 22(0.87) | |
| ACBV-25M1/8UH | 1/4M x 1/8"ID | 55(2.17) | 22(0.87) | |
| ACBV-25M3/16UH | 1/4M x 3/16"ID | 63(2.48) | 22(0.87) | |
| ACBV-25M1/4UH | 1/4M x 1/4"ID | 68(2.68) | 22(0.87) | |
| ACBV-25M3/8UH | 1/4M x 3/8"ID | 68(2.68) | 22(0.87) | |
| ACBV-25M1/2UH | 1/4M x 1/2"ID | 68(2.68) | 22(0.87) | |
| ACBV-33M1/8UH | 3/8M x 1/8"ID | 61(2.40) | 24(0.94) | |
| ACBV-33M3/16UH | 3/8M x 3/16"ID | 69(2.72) | 24(0.94) | |
| ACBV-33M1/4UH | 3/8M x 1/4"ID | 74(2.91) | 24(0.94) | |
| ACBV-33M3/8UH | 3/8M x 3/8"ID | 74(2.91) | 24(0.94) | |
| ACBV-33M1/2UH | 3/8M x 1/2"ID | 74(2.91) | 24(0.94) | |
| ACBV-50M1/4UH | 1/2M x 1/4"ID | 83(3.27) | 24(0.94) | |
| ACBV-50M3/8UH | 1/2M x 3/8"ID | 83(3.27) | 24(0.94) | |
| ACBV-50M1/2UH | 1/2M x 1/2"ID | 83(3.27) | 24(0.94) |

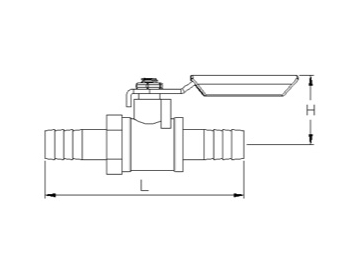

Hose Barb x Hose Barb
| ACBV-12H | 1/8"ID x 1/8"ID | 57(2.24) | 22(0.87) | |
| ACBV-18H | 3/16"ID x 3/16"ID | 61(2.40) | 22(0.87) | |
| ACBV-25H | 1/4"ID x 1/4"ID | 65(2.56) | 22(0.87) | |
| ACBV-33H | 3/8"ID x 3/8"ID | 65(2.56) | 24(0.94) | |
| ACBV-50H | 1/2"ID x 1/2"ID | 65(2.56) | 24(0.94) |
Male x Female, NPT
| ACBV-12MF | 1/8X1/8 | 40(1.57) | 22(0.87) | |
| ACBV-25MF | 1/4X1/4 | 40(1.57) | 24(0.94) | |
| ACBV-33MF | 3/8X3/8 | 46(1.81) | 24(0.94) | |
| ACBV-50MF | 1/2X1/2 | 55(2.16) | 28(1.10) | |
| ACBV-75MF | 3/4X3/4 | 65(2.56) | 32(1.26) |
Female x Female, NPT
| ACBV-12FF | 1/8X1/8 | 40(1.57) | 22(0.87) | |
| ACBV-25FF | 1/4X1/4 | 40(1.57) | 22(0.87) | |
| ACBV-33FF | 3/8X3/8 | 46(1.81) | 24(0.94) | |
| ACBV-50FF | 1/2X1/2 | 55(2.16) | 28(1.10) | |
| ACBV-75FF | 3/4X3/4 | 65(2.56) | 32(1.26) |

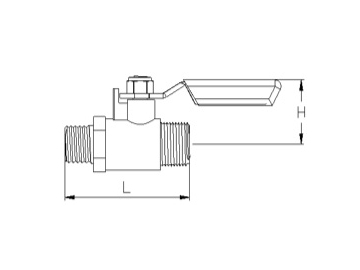

Male x Male, NPT
| ACBV-12MM | 1/8X1/8 | 44(1.73) | 22(0.87) | |
| ACBV-25MM | 1/4X1/4 | 44(1.73) | 22(0.87) | |
| ACBV-33MM | 3/8X3/8 | 50(1.97) | 24(0.94) | |
| ACBV-50MM | 1/2X1/2 | 59(2.32) | 28(1.10) | |
| ACBV-75MM | 3/4X3/4 | 69(2.72) | 32(1.26) |
