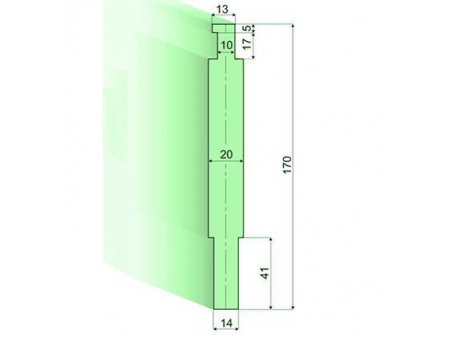

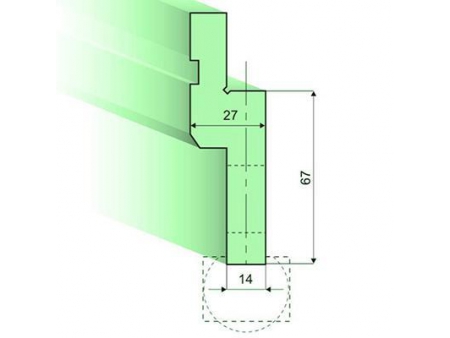

Holder for radius-tools and radius-tools R 7-50, Amada Press Brake Tooling
Request a Quote
| F 15.010 (800KN/m Max) | |
| Length | Weight |
| 835mm | 16.0KG |
| 412mm | 8.0KG |
| F 15.018 (800KN/m Max) | |
| Length | Weight |
| 835mm | 41.0KG |
| 415mm | 20.5KG |
| F 15.014 (800KN/m Max) | |
| Length | Weight |
| 835mm | 47.0KG |
| 415mm | 23.5KG |
| Model | R(mm) | H(mm) | 835mm | 415mm |
| 7.0 | 11.5 | 0.90kg | 0.45kg | |
| 7.5 | 11.5 | 1.00kg | 0.50kg | |
| 8.0 | 13.0 | 1.20kg | 0.60kg | |
| 9.0 | 16.0 | 1.60kg | 0.80kg | |
| 10.0 | 16.0 | 2.00kg | 1.00kg | |
| 11.0 | 16.0 | 2.10kg | 1.05kg | |
| 11.5 | 19.0 | 2.50kg | 1.25kg | |
| 12.0 | 20.0 | 2.70kg | 1.35kg |
| Model | R(mm) | H(mm) | 835mm | 415mm |
| 12.5 | 16.0 | 3.30Kg | 1.65kg | |
| 13.0 | 17.0 | 3.50kg | 1.75kg | |
| 14.0 | 19.0 | 3.80kg | 1.90kg | |
| 15.0 | 20.0 | 5.00kg | 2.50kg | |
| 16.0 | 21.0 | 5.10kg | 2.55kg | |
| 17.0 | 21.5 | 5.80kg | 2.90kg | |
| 17.5 | 22.0 | 6.00kg | 3.00kg | |
| 19.0 | 25.0 | 6.30kg | 3.15kg | |
| 20.0 | 24.0 | 6,80kg | 3.40kg | |
| 22.5 | 25.0 | 8.00kg | 4.00kg | |
| 25,0 | 29.0 | 10.00kg | 5.00kg | |
| 27.5 | 34.0 | 12.50kg | 6.25kg | |
| 30.0 | 34.0 | 13.50kg | 6.75kg | |
| 35.0 | 45.0 | 21.00kg | 10.50kg | |
| 40.0 | 45.0 | 24.00kg | 12.00kg | |
| 45.0 | 50.0 | 29.50Kg | 14.75kg | |
| 50.0 | 54.0 | 34.50kg | 17.25kg |
