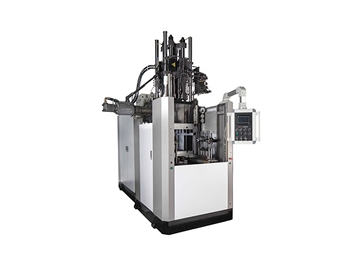

Rubber Injection Molding Machine, CRI1500

Rubber Injection Molding Machine, CRI1500
Rubber Injection Molding Machine, CRI1500
Rubber Injection Molding Machine, CRI1500
Rubber Injection Molding Machine, CRI1500
Rubber Injection Molding Machine, CRI1500
Request a Quote
This product has been discontinued and removed from our shelves.

Applications

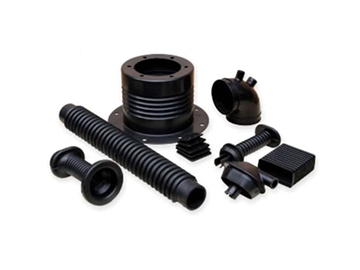

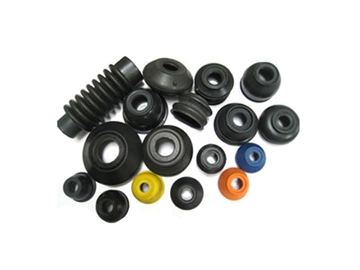

With compact structure, high efficiency and long life, CHAP rubber injection molding machine is suitable for producing difficult-to-mold rubber products, like those with complex shapes.

Technical Specifications of Rubber Injection Molding Machine

CRI1500
Clamping force 1500 KN
Heating plate size 500 mm×500 mm
Heating plate spacing 400~500 mm
Theoretical injection capacity 1000 cm3
Screw diameter ¢40 mm
Screw rotational speed 0~120 r/min
Plunger diameter ¢60 mm
Injection pressure 170 Mpa
Mould opening stroke 400 mm
Motor power 15KW
Heating power 13.6KW
External dimension (LxWxH) 2600mm×1900mm×4000mm
Oil tank capacity 380L

CHAP is a primary rubber injection molding machine manufacturer based in China. We mainly produce vacuum rubber vulcanizing machine, rubber transfer molding machine, C-Frame Transfer type molding machine, plastic injection molding machine and rotary table injection molding machine. Our products are EC and CQC certified, and they are well accepted by customers from South America, Southeast Asia, East Asia, Middle East, and other regions. In addition, our location in Ningbo City, provides us with easy access to convenient transportation, which reduces our transportation cost, enabling us to offer quality products at economical prices. If you are in need of our products, please contact us. Our staff is ready and waiting to serve you.
