Description

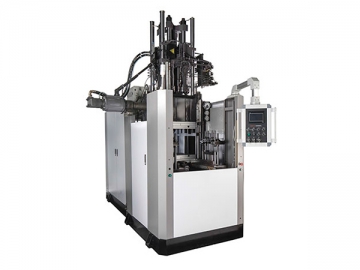

Our CRI series vertical rubber injection molding machine is a versatile piece of equipment utilized by rubber product manufacturers. The high efficiency and high yield design allows for the mass production of complex rubber vulcanized moldings through high pressure and high speed injection.

Application

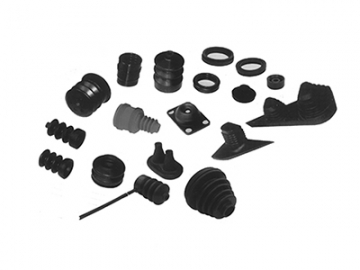

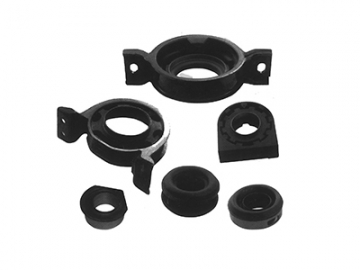

Rubber injection molding machine is suitable for the production of rubber molded products with complex shapes that are difficult to vent, such as multilateral, polygonal and other complex rubber products, especially sporting equipment, medical suppliers, automotive suppliers, electrical products, insulators and other precise electric power products.

Flow of machine motions

  • 1. Initial state
  • 2. Ejector cylinder reset
  • 3. Mold in
  • 4. Core plate up and mold clamping
  • 5. Carriage goes down, injection
  • 6. Exhaust, carriage goes up, vulcanization timing
  • 7. Carriage goes down, storage material
  • 8. Sulfur metering after the storage table, seat rise
  • 9. Open mold, core plate down
  • 10. Take out mold, Ejector cylinder works, separate mold and product, Take out product
