Relief valve ZDB is designed for relieving system pressure.

Main Features
1. Sandwich plate design is adopted for use in vertical stacking assemblies.
2. 4 pressure ranges
3. 4 pressure adjustment manners
4. With one or two relief valves available for the sandwich plate

Technical Parameters of Pressure Relief Valve ZDB
Dimension
6, 10
Max pressure (PMAX) bar 31.5
Max flow (qvmax) l/min 60/100

For more details, please download the PDF file

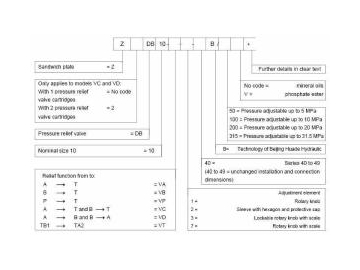

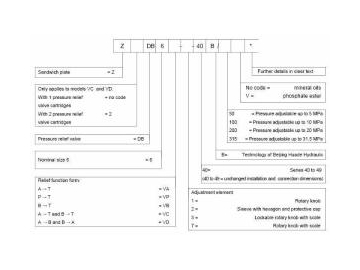

How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
