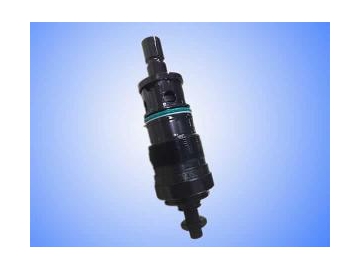

DBD series directly-operated pressure relief valve comes in poppet or ball valve structure. With small volume, little noise, compact structure and stable pressure, this flow control valve is widely applied in small-volume system as safety valve and remote control valve. The relief valve features 7 pressure levels and 3 pressure adjustment manners.

Main Features
1. Installation manner: be connected with plate, pipe, or be inserted
2. 7 pressure levels: 2.5, 5, 10, 20, 31.5, 40, and 63MPa
3. 3 pressure adjustment manners: hexagon socket bolt with screw cover, hand lever (with lock)

Technical Parameters of Pressure Relief Valve DBD
Dimension
6~30
Max pressure (PMAX) bar 63
Max flow (qvmax) l/min 330

For more detailed information, please download the PDF file

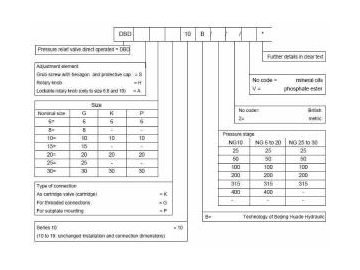

How to Choose the Right Specification
You can determine the model you need according to the tables below. Please feel free to contact us if you have any questions.

Characteristic curves (measured at v = 41 mm2/s, t = 50℃)
