Request a Quote

The ZENYER 101B egg grader is made of stainless steel. This egg grading machine sorts eggs into 7 grades with accuracy within ±1g and has the capacity of 4000 eggs/hour. It can also be attached to a to build up an egg processing line.

Eggs are firstly placed onto the feeding unit, and mechanical weighing scale will weigh the eggs into different grades and drop them into the corresponding table.

Specifications
Name Egg Grader
Product Code 101B
Model ZYF-J2-L
Material Stainless steel
Capacity 4000 eggs/hour
Accuracy ±1g
Grade 7
Feeding lines 2
Power 0.218KW (includes candling)
Voltage 220V-240V,50HZ,single phase
Dimension (L*W*H) 1.7×1.45×1 M
Net weight 180KG
Gross weight 240KG
Function Egg grading & candling
Operation Flow
  • Egg loading
  • Candling
  • Egg printing (Optional)
  • Grading
  • Manual collection table
    Egg loading

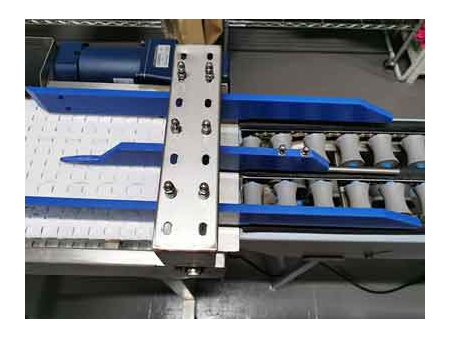

    - Place eggs on the feeding unit manually.
    - Or connect and use to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 2 rows and transferred into the feeding unit of 101B egg grader.

    Candling

    Eggs are transported to the candling unit through the roller of feeding unit. You can check leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 101B egg grader is also equipped with a stainless-steel candling cover and a mirror for better egg inspection.

    Egg printing (Optional)

    ZENYER (2-print head) is an optional attachment to print farm name, logo, date and Julian date etc. on eggs.

    Grading

    Eggs are weighed and graded into 7 grades.

    Manual collection table

    Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
