Request a Quote

The ZENYER 102A egg grader is made of carbon steel with plastic coating process. This egg grading machine sorts eggs into 5 sizes with accuracy within ±1g and has the capacity of 5400 eggs/hour. It can also be attached with a to set up an egg processing line.

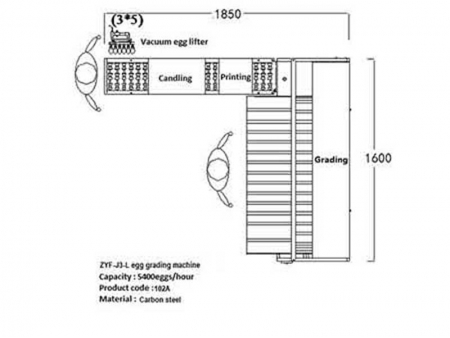

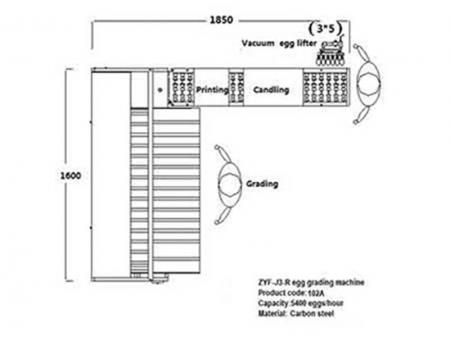

ZENYER provides different egg grader models with egg feeding unit on either the left or the right side.

Specifications
Name Egg Grader
Product Code 102A
Model ZYF-J3-L(R)
Material Carbon steel
Capacity 5400 eggs/hour
Accuracy ±1g
Grade 5
Feeding lines 3
Power 0.38KW (includes candling)
Voltage 220V-240V,50HZ,single phase
Dimension (L*W*H) 1.85*1.6*1M
Net weight 220KG
Gross weight 300KG
Function Egg grading & candling
Operation Flow
  • Egg loading
  • Candling
  • Egg printing (Optional)
  • Grading
  • Manual collection table

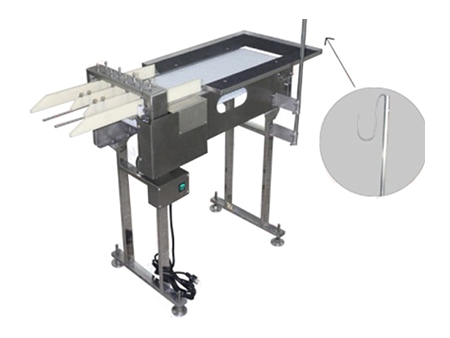

    Egg loading

    -Place eggs on the feeding unit manually.

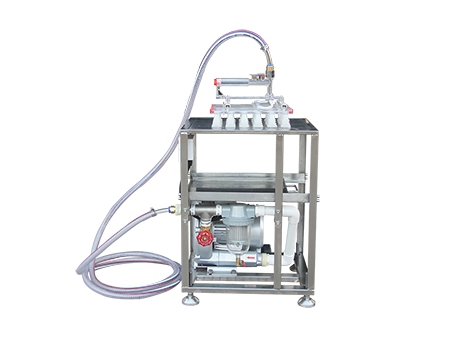

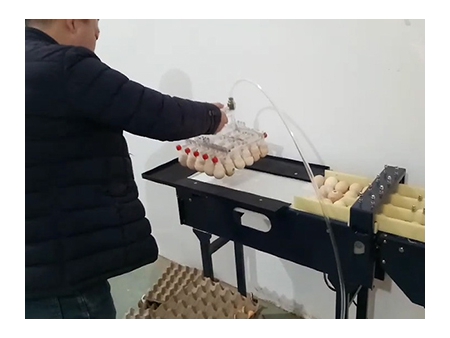

    -Or connect and use to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 3 rows and transferred into the feeding unit.

    Candling

    Eggs are transported to the candling unit through the roller of the feeding unit. You can check leaking, dirty, cracked eggs through candling light by eyes, and manually take them out.

    Egg printing (Optional)

    ZENYER (3-print head) is an optional attachment to print name, logo, date, Julian date, etc. on eggs.

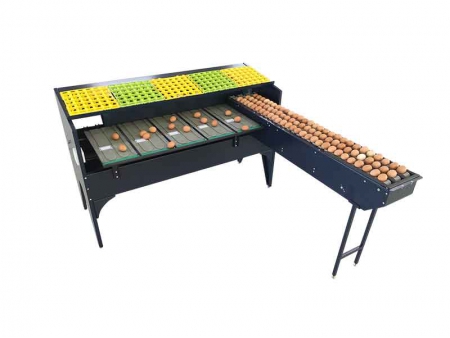

    Grading

    Eggs are weighed and graded into 5 grades.

    Manual collection table

    Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
