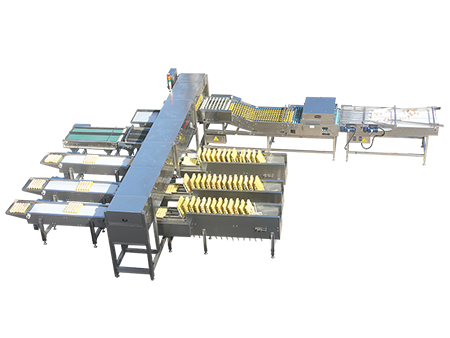

107 Egg Grader (20000 EGGS/HOUR)

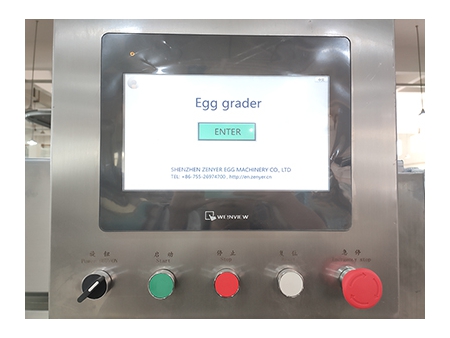

The ZENYER 107 egg grader is made of high-quality stainless steel for great durability. This egg grading model is featured with digital touchscreen and PLC control system. It grades eggs into 6 grades. Eggs are weighed by electronic scale with accuracy within ±1g and capacity of 20000 eggs/hour. The 107 egg grader can be paired with auto packer, and also be attached with the rod conveyor from chicken shed directly for egg loading.
You could also attach a 203A egg washer to form the 303A egg processing line with same capacity of 20000 eggs/hour to perform egg cleaning as well.
| Name | Egg grader |
| Product code | 107 |
| Model | ZYF-DAS6-3ZP |
| Capacity | 20,000 eggs/hour |
| Grading accuracy | ±1 g |
| Grade | 5 |
| Power | 5.33 kW, 50Hz |
| Voltage | 380V, 3-phase |

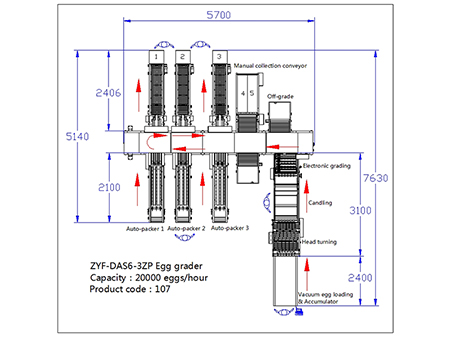

| Dimension (L*W*H) | 8.1*5.7*2 M |
| Net weight | 3100KG |
| Gross weight | 4000KG |
| Functions | Egg accumulator, candling, head turning, grading & counting, automatic packer, manual collection table and conveyor for oversized or too small eggs |
- Egg accumulator
- Automatic head turning
- Candling
- Grading (electronic sensor weighing) & counting
- Auto packer
- Egg printing (optional)
- Manual packing
- Off grade table
Ideally, connect the accumulator with the rod conveyor from chicken shed, eggs from the rod conveyor will flow to the accumulator directly.
Head turning makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
It takes advantage of the UV disinfection system to sanitize egg shells for maximum food security.
Eggs are transported to the candling section. You can check leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 107 egg grader is also equipped with a stainless-steel candling cover and a mirror for better candling results.
Eggs are weighed electronically and graded into 6 grades.

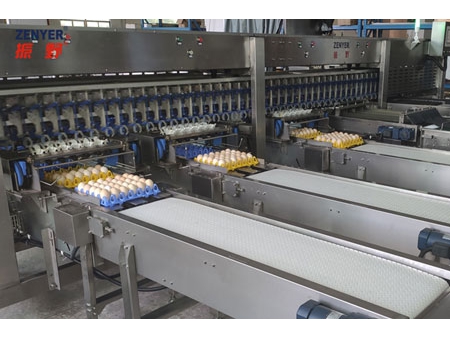

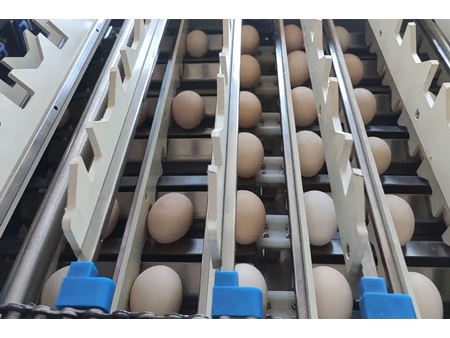

The 107 egg grader is equipped the a hanging system with claws. When you start the grading machine, the hanging claws will spin in a circle continuously, the egg delivery bar between the egg grading station and accumulator, which catch the eggs from the accumulator and loads the eggs into the coming claws. The claws hold the graded eggs and send it to the right position.
It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.

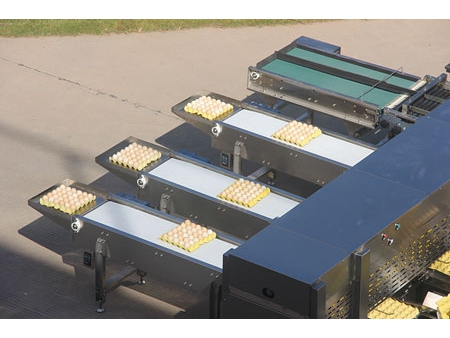

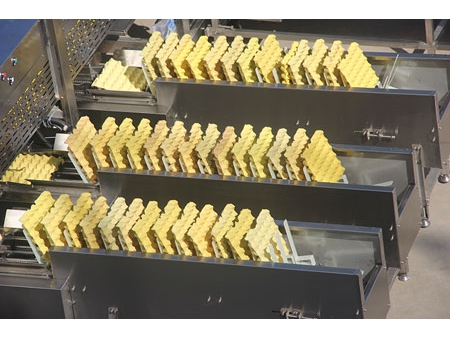

Each automatic packer includes a dropset unit , egg tray transfer conveyor and collection conveyor. Empty cartons/trays need to put onto the transfer conveyor manually, then the transfer conveyor will transport the cartons/trays towards the egg dropset unit to fill the eggs. The egg dropset unit supports 10, 12, 15, 18, 20, 24, 30 egg cartons/trays for each fill. The conveyor will then transport the egg cartons/trays to the end of it.
Each size can be attached with an auto packer. It can be also connected to a manual collection conveyor.
ZENYER (6-print head) is an optional attachment on each egg tray collection conveyor after the cartons/trays filling process, to print company name and logo, date and Julian date, etc. on eggs.
Manual packing laneGraded eggs will be placed onto the sponge roller of the conveyor, the roller will deliver the eggs to its collection section, you can collect the eggs from there and pack them into egg cartons/trays manually.
The conveyor can be split into two sections to accommodate two egg sizes if needed.
Oversized or too small eggs will be placed onto the off-grade table, then you can collect the eggs from the table and pack them into egg trays manually.
