203A Egg Washer (20,000 EGGS/HOUR)

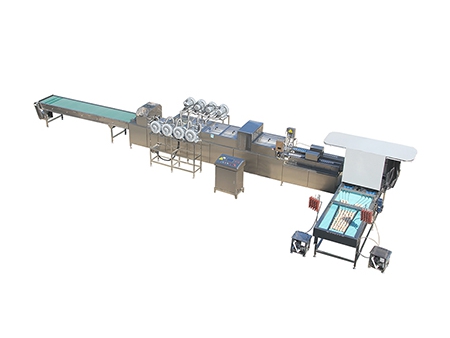

ZENYER 203A egg washer is made of high-quality stainless steel for great durability, corrosion resistance and hygiene. The 203A egg washing machine is comprised of the 203A main machine, an accumulator, and an optional manual collection conveyor. It has an adjustable capacity and can reach maximum capacity of 20,000 eggs/hour.
The egg washer can combine with the ZENYER to form the ZENYER with a capacity of 20,000 eggs/hour
| Product name | Egg cleaning machine |
| Product code | 203A |
| Model | ZYX-JS2-3 |
| Capacity | 20,000 eggs/hour |
| Main material | Stainless steel |
| Power | 22.59kW |
| Voltage | 380V, 50HZ, 3-phase |

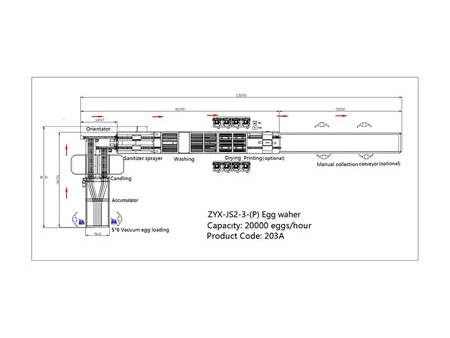

| Dimension (L*W*H) | 13.1*4.4*2 M |
| Net weight | 850KG |
| Gross weight | 1150KG |
| Function | Accumulator & candling, sanitizing sprayer, brush washing & drying, (printing for option), manual collection conveyor (or attach with an egg grader） |
- Accumulator (including candling)
- Sanitizing
- Washing
- Drying
- Printing (optional)
- Manual collecting conveyor (optional)

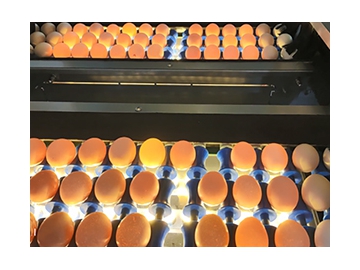

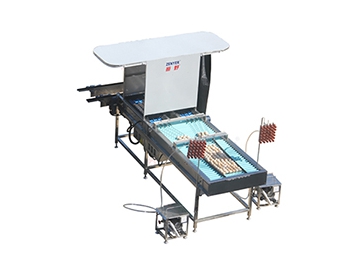

Ideally, connect the accumulator with the rod conveyor from the chicken shed, eggs from the rod conveyor will flow to the accumulator directly. This accumulator also features candling to check for leaking, dirty or cracking eggs. Then it would direct the eggs onto the feeding line of egg washer.

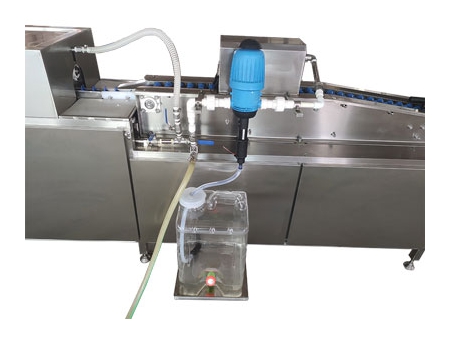

The sanitizing sprayer is installed in the front of egg washer, which sprays sanitizer or detergent (customer provides chemicals) onto eggs automatically for food security purpose.
- Before washing
- After washing
The eggs will be cleaned by brushes with warm water (customer provides). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.
Water on the eggs will be swept off by the brushes, and meanwhile the eggs themselves are dried by the drying system. The drying rate can reach up to 95%, depending on the environmental humidity.
ZENYER 401H egg printer (single print head) is an optional attachment at the end of the egg washer after drying process, which prints company name and logo, date, and Julian date, etc. on eggs.
Washed eggs will roll onto the collection conveyor and being collected manually.
