XHD-80/130/80*2400-2000mm PE Cast Film Line

XHD-80/130/80*2400-2000mm PE Cast Film Line
XHD-80/130/80*2400-2000mm PE Cast Film Line
XHD-80/130/80*2400-2000mm PE Cast Film Line
XHD-80/130/80*2400-2000mm PE Cast Film Line
Request a Quote

This product has been discontinued and removed from our shelves.

Our PE cast film line can produce 2000mm wide tri- or five-layer cast film efficiently thanks equipped 3 screws. In order to ensure the high quality, all components on the PE cast film line are sourced through internationally known suppliers who have worked with us for years, like PLC from Mitsubishi and a touch pad from PROFACE. The overall power consumption ratio of this line is 0.4 KWH/KG. The line speed is up to 380m/min with output between 0.4 to 0.5t film per hour. It has won wide welcome recognition no matter in terms of work efficiency or the stability of finished film through years of upgrade.

Applicaiton

Shrink film, cast hand pallet wrap stretch film

Technical Parameters
Model XHD-80/130/80-2400
Power Mode Three-phase Electric Power
Total Power 300KW
Materials LLDPE, LDPE & MLLDPE
Film Thickness 12~50 μm
Effective Film Width 2000 mm
Film Structure ABC or ACBCA
Line Speed 250 m/min
Extrusion Capacity 0.35~0.55 t/h
Dimension (L*W*H): 18*8*5 m
Net weight 35t
Features
  • Apply the most-advanced four-shaft winder system
  • Automatic paper core loading and finished rolls unloading
  • No need for manual adhesive tape
  • Uploading air shaft automatically

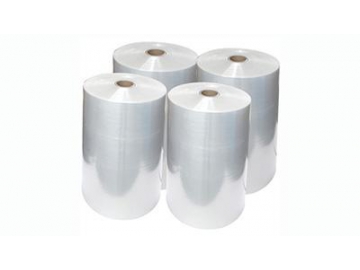

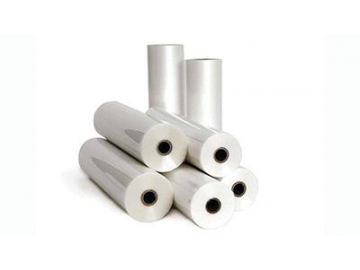

PE Cast Film
  • PE film is widely used for packing and protection of products, ranging from loads bundled on pallets, to individual items in large overall dimensions.
  • Three-layer or five-layer PE film has a better durability and puncture resistance.
