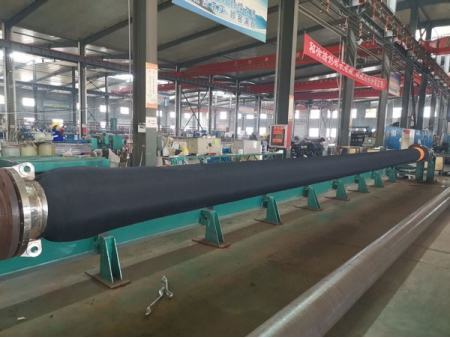

Submarine Hose without Float Collars
Request a Quote

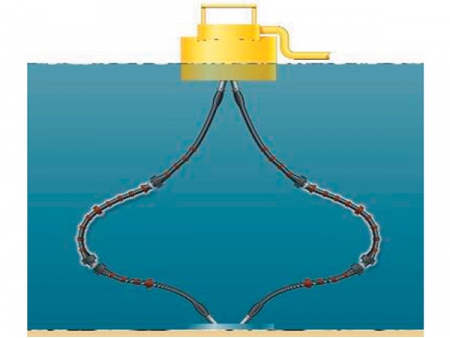

Designed without float collars, the submarine hose is suitable for use in connecting with subsea manifolds, and main submarine pipelines fitted in the hose strings on the single buoy mooring system. Single carcass hose and double carcass hose can be designed and manufactured according to the actual offshore application.
Features
1. Rated working pressure: 15, 19 or 21 bar
2. Safety factor: 5:1
3. Electrical continuity: continuous or as requested
Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)
| Inner Diameter mm | Weight in Empty Air kg | Outside Diameter mm | Min. Bending Radius m | |||
| 9.1m | 10.7m | 12.2m | A | B | ||
| 150(6") | 372/144 | 415/161 | 458/178 | 368 | 254 | 0.6(2.0') |
| 200(8") | 505/217 | 561/242 | 617/267 | 471 | 311 | 0.8(2.8') |
| 250(10") | 681/282 | 762/311 | 843/340 | 471 | 368 | 1.0(3.3') |
| 300(12") | 942/346 | 1052/381 | 1162/416 | 581 | 471 | 1.2(4.0') |
| 400(16") | 1389/592 | 1559/659 | 1729/726 | 697 | 581 | 1.6(5.3') |
| 500(20") | 1840/837 | 2072/928 | 2304/1019 | 799 | 697 | 2.0(6.6') |
| 600(24") | 2704/1254 | 3030/1399 | 3356/1544 | 946 | 799 | 2.4(8.0') |
Note: Specifications can be made upon request.
