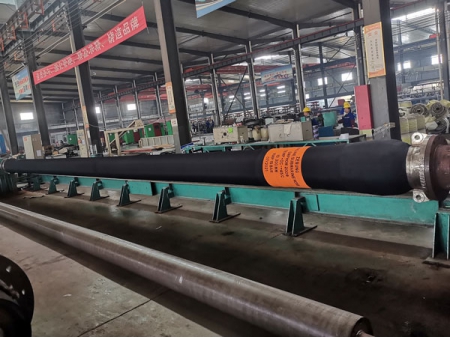

One End Reinforced Submarine Hose without Collars

Request a Quote

Website: http://zebungmarinehose.com/1-2-4-submarine-hose-one-end-reinforced-without-float-collars.html

Designed without float collards, the submarine hose features textile reinforced bonded elastomers used as the lining. This one end reinforced subsea hose is used for connecting with the buoy systems, subsea manifolds, etc.

Features
Rated working pressure: 15, 19 or 21 bar
Safety factor: 5:1
Electrical continuity: Discontinuous or as request

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)

Inner Diameter mm	Weight in Air Empty kg			Outside Diameter mm		Min. Bending Radius m
Inner Diameter mm	9.1m	10.7m	12.2m	A	B	Min. Bending Radius m
150(6")	342/137	380/152	418/167	305	210	0.6(2.0')
250(10")	639/272	712/299	785/326	415	320	1.0(3.3')
300(12")	810/305	902/334	994/363	485	375	1.2(4.0')
400(16")	1216/560	1359/619	1502/678	575	475	1.6(5.3')
500(20")	1600/778	1792/858	1984/938	695	580	2.0(6.6')
600(24")	2404/1180	2680/1309	2956/1438	810	700	2.4(8.0')

Note: Specifications can be made upon request.

Certificates

BV Test Report (Single Carcass Floating Prototype-DN300mm)
BV Test Report (Single Carcass Floating Prototype-DN600mm)
BV Test Report (Single Carcass Submarine Prototype-DN300mm)
BV Test Report (Single Carcass Submarine Prototype-DN600mm)
BV Test Report (Submarine Double Carcass Prototype-DN600mm)
BV Test Report (Floating Double Carcass Prototype-DN600mm)
