Tube Filler and Sealer GRRB-H3-3060A (high viscosity liquid / paste packaging with color mixing)
Request a Quote
Application

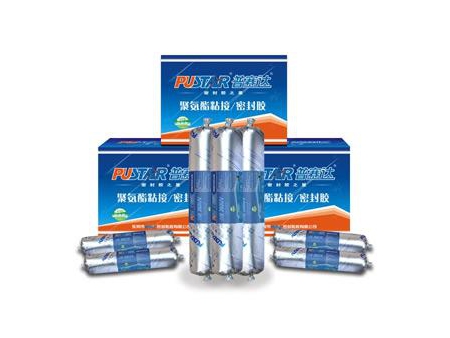

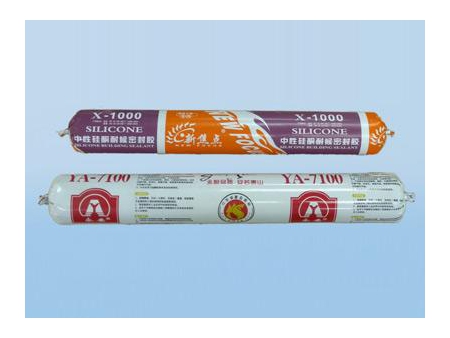

This tube filler and sealer is usually used to fill high viscous pastes, such as silicone sealant, modified saline adhesive, polyurethane sealant, photovoltaic sealant, etc.
Description
This filler is modified based on the GRRB-3060A tube filler, adding a color mixing system. So it can mix different colors of sealants and then fill the mixed product. It is an integrated packaging equipment, having functions of aluminum composite film hot sealing, metering with static mixer and clipping. This tube filler should be used together with a static mixer.
Technical parameters
| Filling speed | 20-25 cartridges/min |
| Filling accuracy | ±2g/590ml |
| Filling range | 280ml-600ml (customization is offered for larger capacity) |
| Overall power | 3KW (about 2.5KW when coupled with3K static mixer) |
| Gas pressure | 0.7MPa |
| Gas consumption | 100L/min |
| Working pressure of hydraulic system | 7-9Mpa |
| Machine size (L x W x H) | 1380x1100x1800mm |
| Net weight | 0.8T |
Note: Great can match the equipment’s voltage and frequency for clients in different locations.
Structure

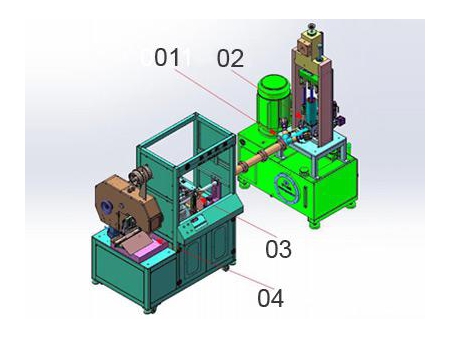

- Automatic filling (cooperating with the static mixer) 01: Mixing mechanism
02: Metering mechanism
03:Aluminum film hot sealing

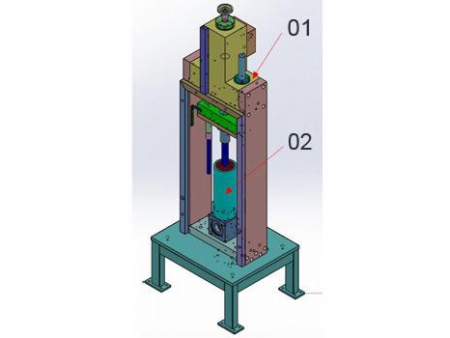

04: Clipping mechanism - Measuring system
-

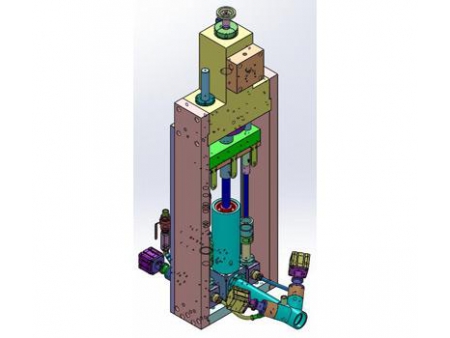

- 01: Hydraulic squeezing system
02: Base material metering system

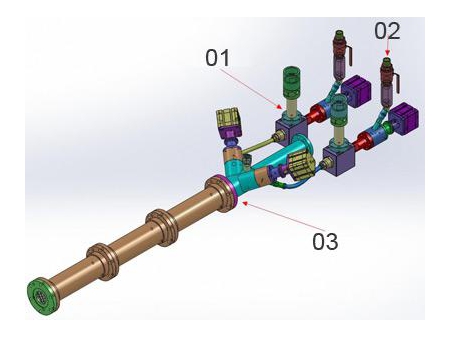

- Mixing system 01: Additive metering
02: Aase inlet

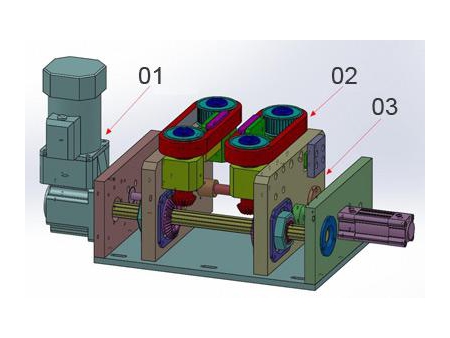

03: Static mixing system - Aluminum film transporting 01:Gear motor
02:Film conveying belt

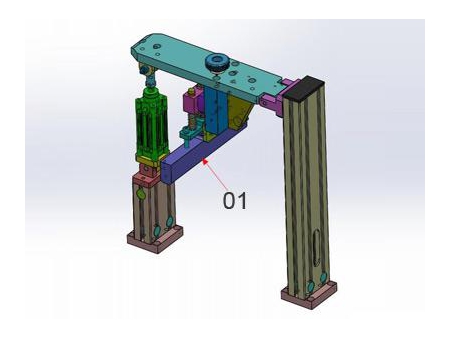

03:Film feeding clip - Products discharge mechanism 01: Products rotating mechanism

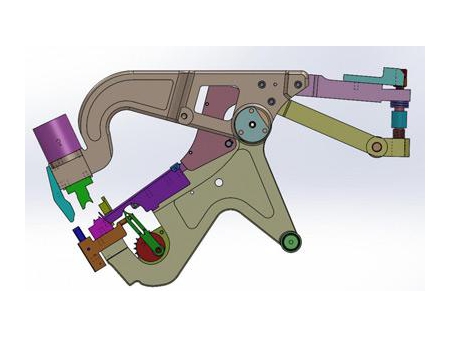

- Automatic clipping

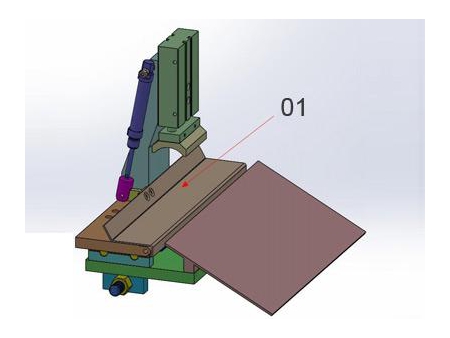

- Aluminum film hot sealing device 01: Hot sealing mould
- Automatic code-printing
- Filling volume adjustment is available in manual and automation
- Fault warning and displaying
