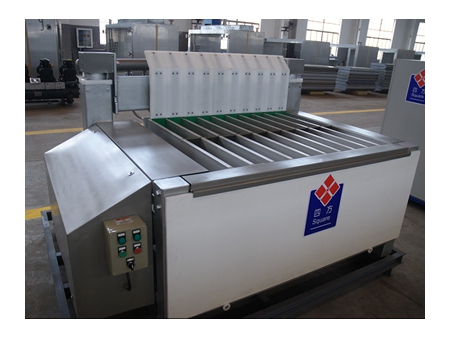

The vertical plate freezer is suitable for the quick freezing of various block foods, such as fish, shrimp, meat products, pet food, etc. It is widely used in many fields such as seafood processing, offshore fishing, minced meat processing, and pet food freezing processing.

Parameters

Items	Parameters
Type	VPF26×100
Layout dimension	4090×1635×1340mm
Frozen block size	525×525×100（length×width×thickness mm）
Freezing product	20 kg/piece（Whole fish）
Output	1040kg/batch
Number	27 plates, effective layers 26
Spacing between layers	Maximum: 106mm, minimum: 100 mm
Feed and outfeed temperature	Feed temperature:+15℃；Outfeed temperature: -18℃
Freezing time	200min
Freezing cycle time	220min
Liquid supply mode	Liquid pump recirculation
Defrosting method	Hot gas defrosting
Liquid supply and suction pipe dia.	Refrigerant liquid supply: φ42mm, return air: φ89mm

Notes: These parameters are subject to change according to different products and freezing requirements.

Recommended Applications

Aquatic Products
Poultry Products

Features

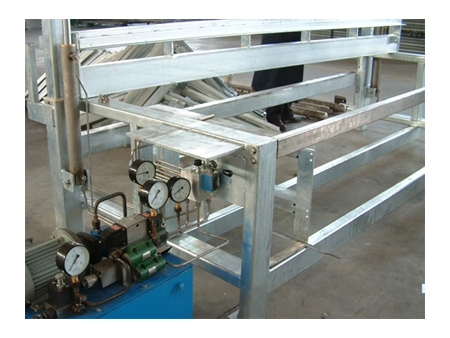

The frame structure of freezer is made of hot-dip galvanized material which has the advantage of corrosion resistance. This material guarantees the freezer suitable for both marine use and land use.

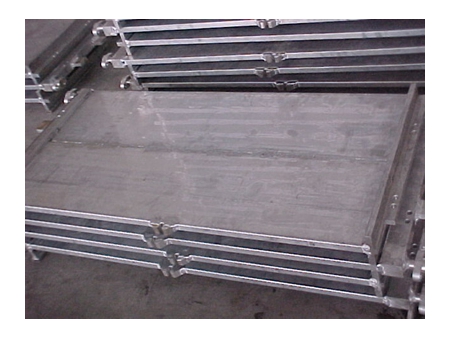

The freezing plate adopts the material of extruded magnesium-aluminum alloy, which has the advantages of light weight, good thermal conductivity and high resistance of corrosion.

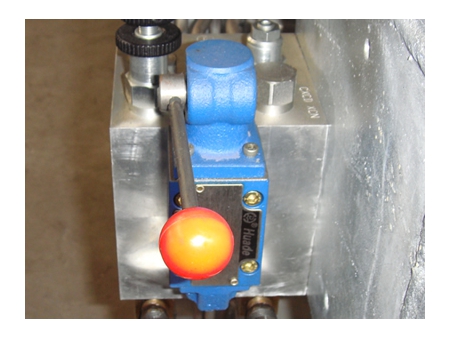

The hydraulic manifold block adopts the plug-in valve core produced by American Rubber Company to effectively ensure the smooth lifting of the evaporative plate.

All sealing elements of the oil cylinder adopts high-quality seals. The seals at the site of cylinder head have deicing copper rings, which make the cylinders have long lifespan and without leakage.

Custom Range

We can design and manufacture the non-standard product according to different conditions of the frozen food and customer requests.
Production capacity can be selected from 800 kg/batch to 1280kg/batch.
The number of evaporative plates is from 21 to 33 pieces.
Frozen product thickness is available from 50, 75, 90, 100mm.
Optional hydraulic station.
