Description of PCBN Material
Cubic boron nitride is the second hardest material in the world invented successfully in 1957. The hardness of CBN’s single crystal is HV8000-9000 while the hardness of PCBN is HV2500-5000, so its abrasive resistance is considerably better than tungsten carbide and ceramics. With high temperature oxidation resistance at 1000℃, CBN will do not have any chemical reaction together with ferrous material at 1200-1300℃. So CBN material is ideal for cutting ferrous materials, the CBN cutting tools are used for cutting hardened steel, cast iron, sintered iron as well as powder metallurgy components.

Features of Mini PCBN Tipped Insert
1. The mini PCBN tipped insert is the most economic inserts with competitive price.
2. Advanced welding technology is adopted, this PCBN insert has two or four cutting edges, with the thickness of 2.2mm.
3. The best choice of OD and boring cutting
4. Higher processing efficiency

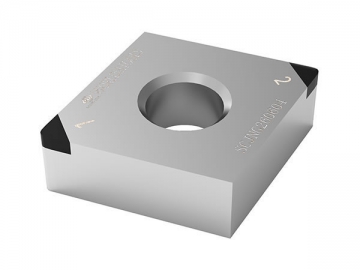

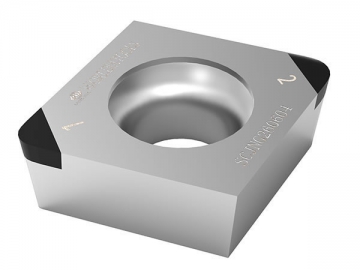

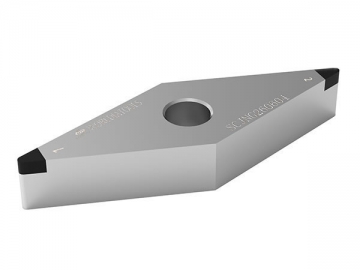

Worldia Mini PCBN Tipped Insert

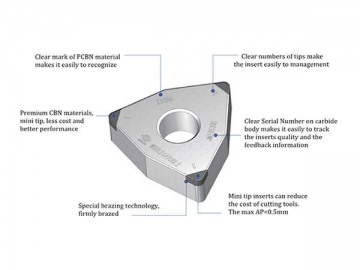

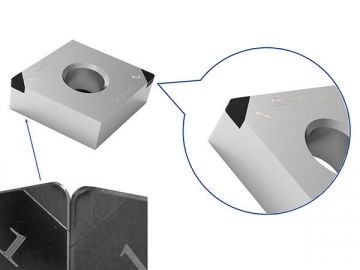

1.Premium CBN materials, mini tip, less cost and better performance
2. Clear mark of PCBN material makes it easily to recognize
3. Clear numbers of tips make the insert easily to management
4. Special welding technology, firmly welded
5. Mini tip inserts can reduce the cost of cutting tools. The max. AP=0.5mm
6. Clear serial number on carbide substrate makes it easily to track the insert quality and the feedback information

Technical Specifications
Standard cutting edge Sharp Cutting Edge Strong Cutting Edge
S0102505 S0051502 S0103505
Shape ISO ANSI Cutting Edge Tip Shape Grade Dimensions in mm
PN311 PN310 PN312 ic φd s r la
CCGW060202-2N CCGW2(1.5)(0.5)-2N S0102505 SLST22S ● ● ● 6.35 2.8 2.38 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
CCGW060204-2N CCGW2(1.5)1-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
CCGW060208-2N CCGW2(1.5)2-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
CCGW09T302-2N CCGW3(2.5)(0.5)-2N S0102505 SLST22S ● ● ● 9.525 4.4 3.97 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
CCGW09T304-2N CCGW3(2.5)1-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
CCGW09T308-2N CCGW3(2.5)2-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
DCGW11T302-2N DCGW3(2.5)(0.5)-2N S0102505 SLST22S ● ● ● 9.525 4.4 3.97 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T304-2N DCGW3(2.5)1-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T308-2N DCGW3(2.5)2-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T312-2N DCGW3(2.5)3-2N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090202-3N TPGW(1.8)(1.5)(0.5)-3N S0102505 SLST22S ● ● ● 5.56 2.5 2.8 2.38 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090204-3N TPGW(1.8)(1.5)1-3N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090208-3N TPGW(1.8)(1.5)2-3N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
VBGW160402-2N VBGW33(0.5)-2N S0102505 SLST22S ● ● ● 9.525 4.4 4.76 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
VBGW160404-2N VBGW331-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
VBGW160408-2N VBGW332-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
VBGW160412-2N VBGW333-2N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●
VCGW160402-2N VCGW33(0.5) S0102505 SLST22S ● ● ● 9.525 4.4 4.76 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
VCGW160404-2N VCGW331-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
VCGW160408-2N VCGW332-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
SNGA120402-8N SNGA43(0.5)-8N S0102505 SLST22S ● ● ● 12.7 5.16 4.76 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
SNGA120404-8N SNGA431-8N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
SNGA120408-8N SNGA432-8N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
SNGA120412-8N SNGA433-8N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●
WNGA080402-3N WNGA43(0.5)-3N S0102505 SLST22S ● ● ● 12.7 5.16 4.76 0.2 2.2
S0051502 ● ● 　
S0103505 　 ● ●
WNGA080404-3N WNGA431-3N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
WNGA080408-3N WNGA432-3N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
WNGA080412-3N WNGA433-3N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●
Tip shape
SF SL SS CB CS SWW SWU
Full Face Solid Tipped Corner Solid CBN Standard Tipped Corners Standard Full Edge Solid Tipped Corners
Type ‘W’ 		Solid Tipped Corners
Type ‘U’
Cutting Edge Design
ST WG CB
Nose Radius Wiper Chip Breaker
　 　
Hard Steel Machining - Special PCBN Introduction.
Code Ap 22 25 28 30 40
Size Ap 2.2 2.5 2.8 3 4
Hard Steel Machining - Special PCBN Introduction.        Standard tipped comers      Solid tipped comers
Work piece
Material 		type WORLDIA
PCBN Grades 		Content PCBN Grade Bond Hardness Characteristics Applications
H Solid tipped
corners 		PN311 45~50 1 TiC 2600~2800 Good thermal stability and crater wear resistance Used for high-speed continuous
turning of hardened steel
PN310 60~65 1~2 TiCN 2600~2800 Combination of wear
resistance and thermal
stability 		Used for moderately interrupted
and continuous turning of
hardened steel
PN312 65~70 1< TiN 2700~2900 High degree of toughness due
to fine CBN and ceramic
binder matrix 		Used for heavy interrupted
turning of hardened steel

Material
The tool bit uses premium PCBN blanks manufactured by world famous companies.
The body part uses high quality tungsten carbide.

Application
Worldia mini tipped PCBN inserts are used for machining hardened steels, cast irons and sintered irons as well as powder metallurgy components.

Packaging
Our mini PCBN tipped insert can be packed with standard WORLDIA packaging, and also various non-standard packaging as per request.

Quality Control
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.

OEM/ODM Service
We can customize the tool and laser markings according to your requirements. Our business partners are all over the world including some cutting tool industry giants.

Contact
We are ready to work together with friends from different walks of life to promote the development of super hard materials and tools industry, and also global agents are welcomed.

As a specialized PCBN insert manufacturer and supplier in China, Worldia also provides a wide range of products including diamond engraving tool, PCD saw blade, PCD diamond scribing wheel, and much more.
