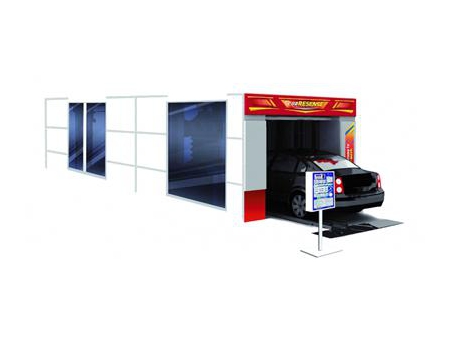

Tunnel Car Wash Equipment CC-692 (11-Brush)
Request a Quote
The car wash tunnel system features 11 car brushes (CC-692), and it is 11.6 m long to ensure it can clean the entire car, including the car wheel guide devices.
Parameters
| Model | CC-692 |
| Dimension | L*W*H: 13.2m×3.8m×3.44m |
| Conveyor 11.6m (including car wheel guide devices) | |
| Assembling Range | L*W: 14310mm×4000mm |
| Voltage | AC380V50Hz (5 wire system) |
| Water Supply | DN25mm water flow rate≥200L/min |
| Air Pressure | 0.75～0.9Mpa/ air flow rate≥0.1m³/min |
| Ground Flatness | Deviation≤10mm |
| Applicable Vehicles | Sedan/jeep/minibus within 10 seats |
| Applicable Car Dimension | L*W*H: 5.2m×2.15m×2.2m (wheelbase≤3.2m) |
| Washing Efficiency | 55-60 cars/h |
| Small Vertical Brush | 4 |
| Large Vertical Brush | 4 |
| Horizontal Brush | 2 |
| Overhead Brush | 1 |
| Water Consumption | 95-140L/car |
| Power Consumption | 0.6kwh/car |
| Shampoo Consumption | 7ml/car |
| Water Wax Consumption | 12ml/car |
Advantages
- The galvanized frame of the tunnel car wash system is both solid and durable
- A high pressure wash system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- 4 groups of powerful lift dryers.
- The liquid automatic siphon is easy to operate.
- Multiple cleaning and long term washing will completely rinse the car, ensuring a superior washing performance.
- A PLC fully-automatic computer control system ensures a higher security.
- The one-click washing method is easy to operate.
- A contour-following drying system creates a better drying performance.
Configurations
| Standard Devices | Optional Devices |
| Brush system | Undercarriage wash system |
| Hot dip galvanized frame | High-pressure water devices |
| Shampoo spray system | |
| Water wax spray system | |
| Contour-following drying system | |
| Car entry guide rail apparatus | |
| Equipment data intellectualization | |
| Self-diagnose system |
